SHPF stapling operation for multiple staple jobs
To enable the finisher to handle multiple staple jobs, the first two sheets of each paper stack are simultaneously fed
to the compiler assembly. The following example demonstrates two staple jobs.

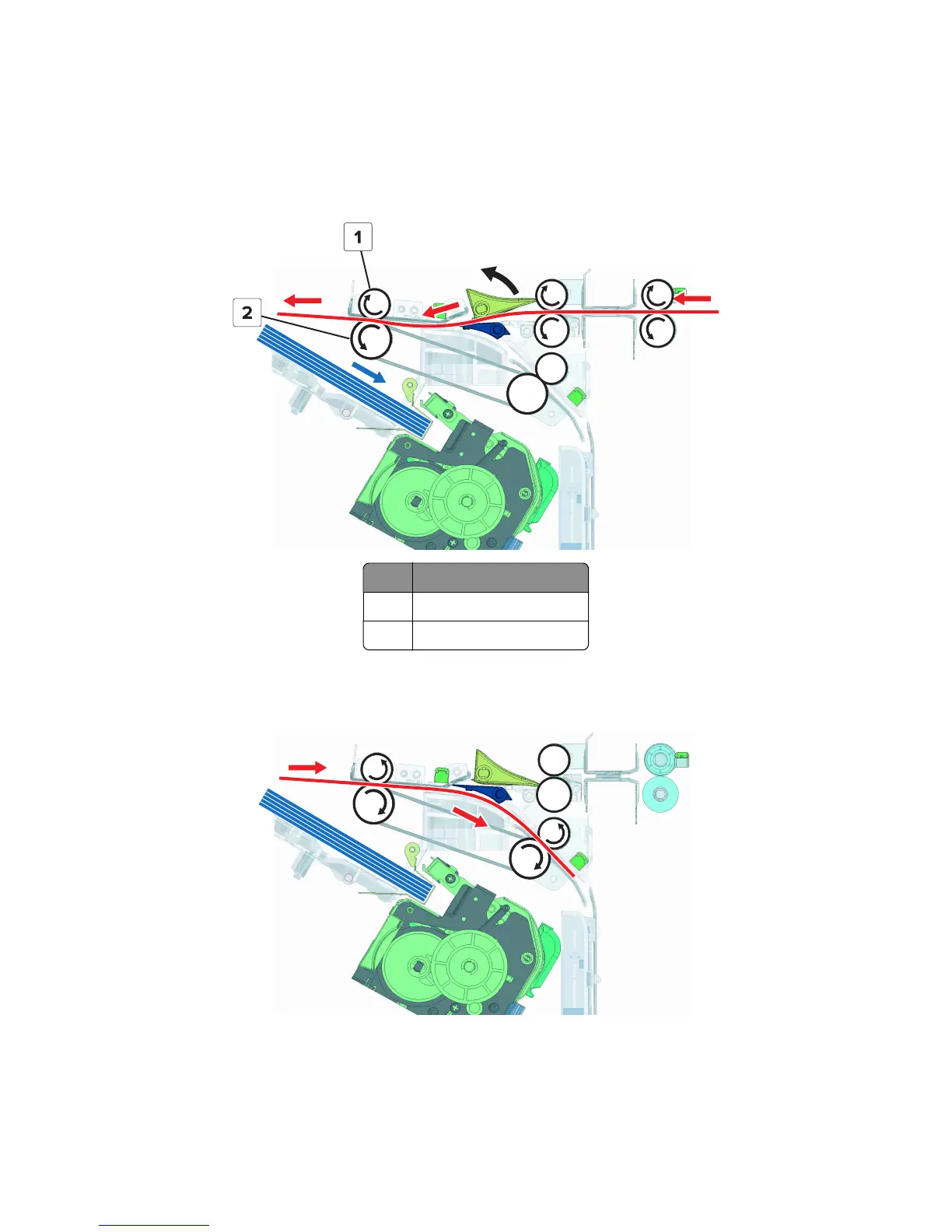

After the last sheet of the first stack is fed to the compiler assembly, the first sheet of the second stack is fed between
the compiler feed roller and idler rollers.
# Part
1 Compiler feed idler rollers
2 Compiler feed roller
While the first stack is being aligned, the compiler feed roller rotates in reverse and then feeds the paper to the pre-
feed guide.
4021, 7421
Appendix C: Theory of operation
661
