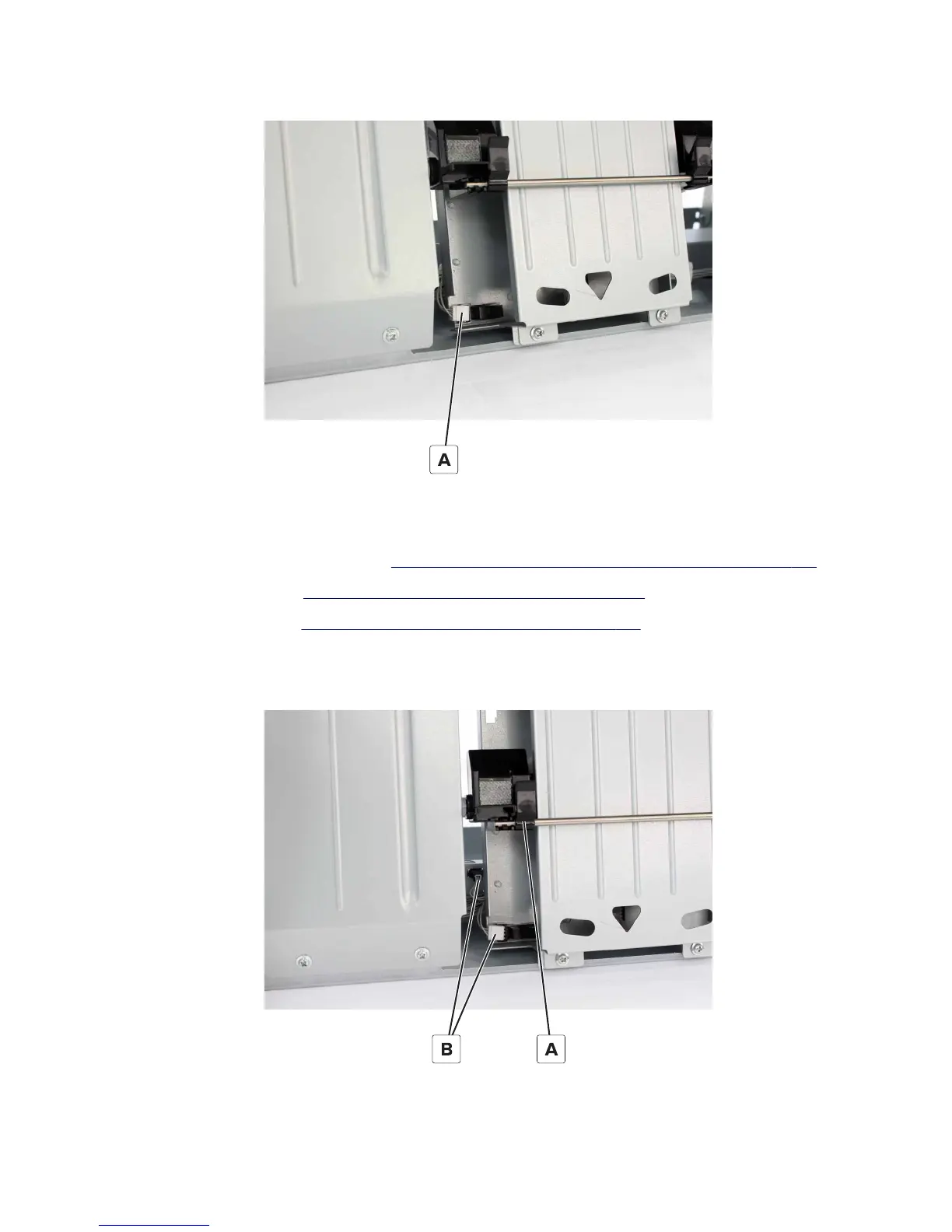

4 Disconnect the cable (A), and then remove the sensor.
Booklet maker aligner assembly removal
1 Remove the aligner jam access cover. See “Booklet maker aligner jam access door removal” on page 460.
2 Remove the front cover. See “Booklet maker front cover removal” on page 456.
3 Remove the right cover. See “Booklet maker right cover removal” on page 457.
4 Slide the aligner (A) to the middle.
5 Disconnect the two cables (B).
4021, 7421
Repair information
496
