Lexmark MS911 - Motor (Booklet Maker Paddle) Removal

Motor (booklet maker paddle) removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the paddle belt. See “Booklet maker paddle belt removal” on page 474.

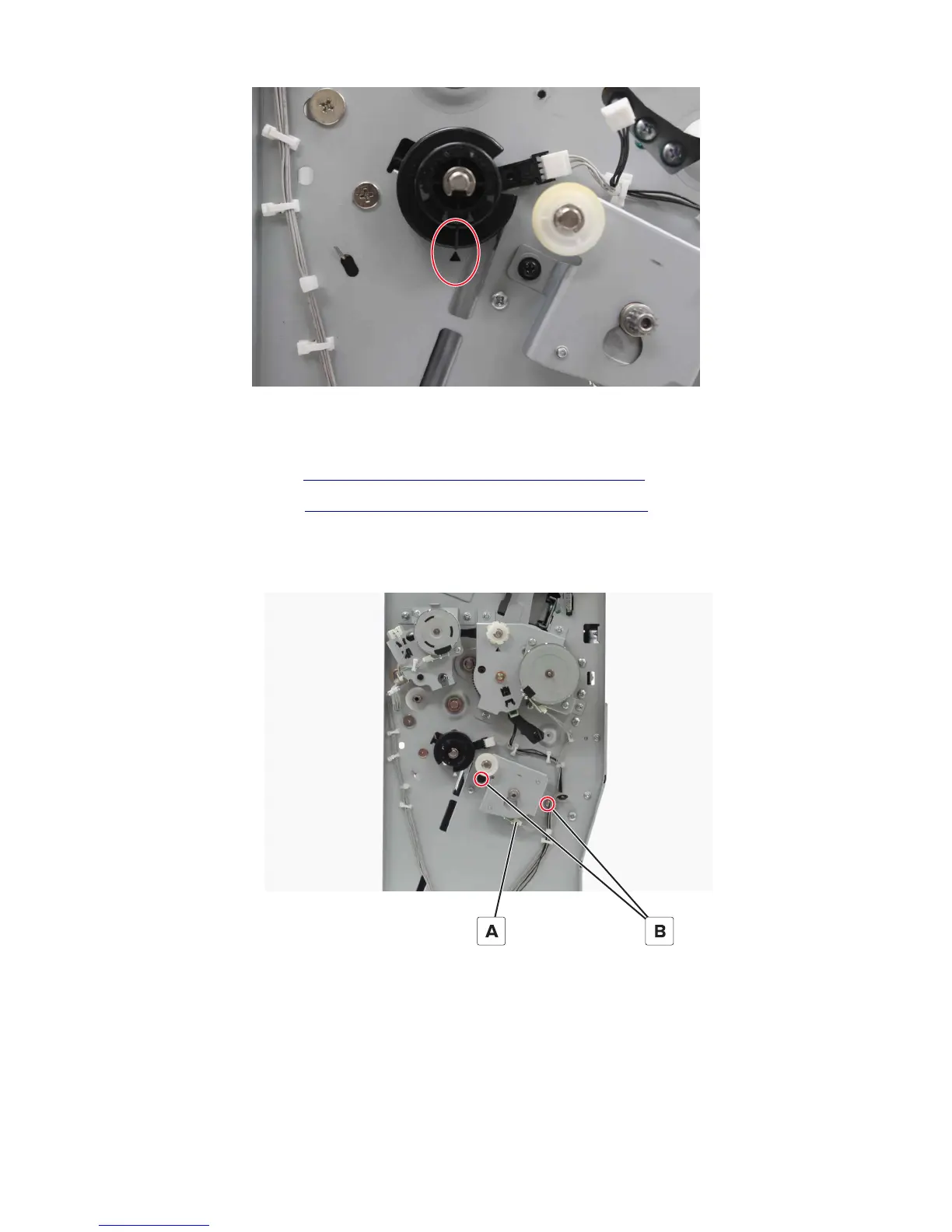

3 Disconnect the cable (A).
4 Remove the two screws (B), and then remove the motor bracket.
4021, 7421
Repair information
476
