Bifold guide drive gears removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the right cover. See “Booklet maker right cover removal” on page 457.
3 Remove the top frame brace. See “Top frame brace removal” on page 463.
4 Remove the middle frame brace. See “Middle frame brace removal” on page 464.
5 Remove the bifold guide motor bracket. See “Bifold guide motor bracket removal” on page 487.
6 Remove the bifold knife primary drive gears bracket. See “Bifold knife primary drive gears removal” on page
516.
7 Remove the bifold knife and tamper assembly. See “Bifold knife and tamper assembly removal” on page 517.

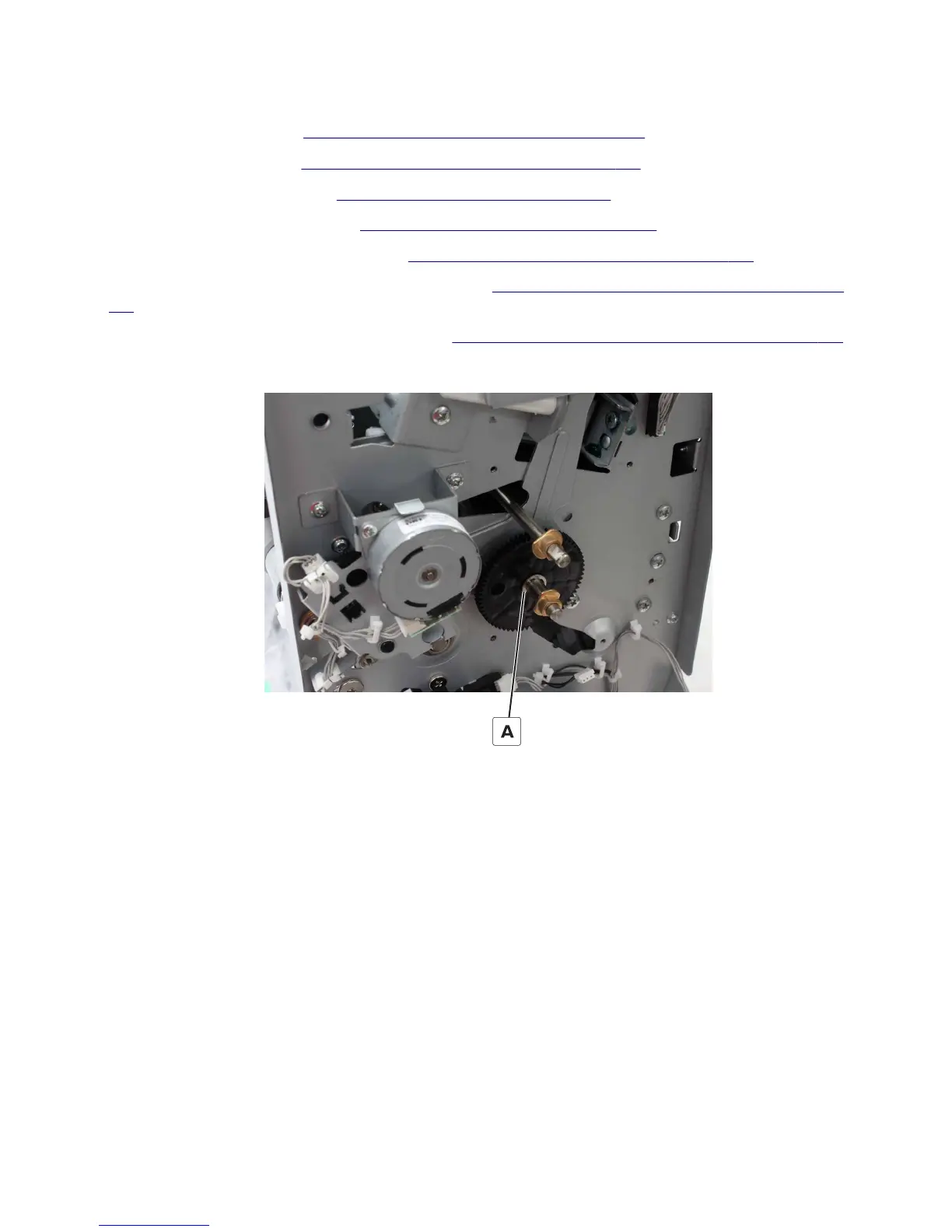

8 Remove the clip (A), and then remove the gear.
4021, 7421
Repair information
525
