Lexmark MS911 - Top Frame Brace Removal

Top frame brace removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the right cover. See “Booklet maker right cover removal” on page 457.

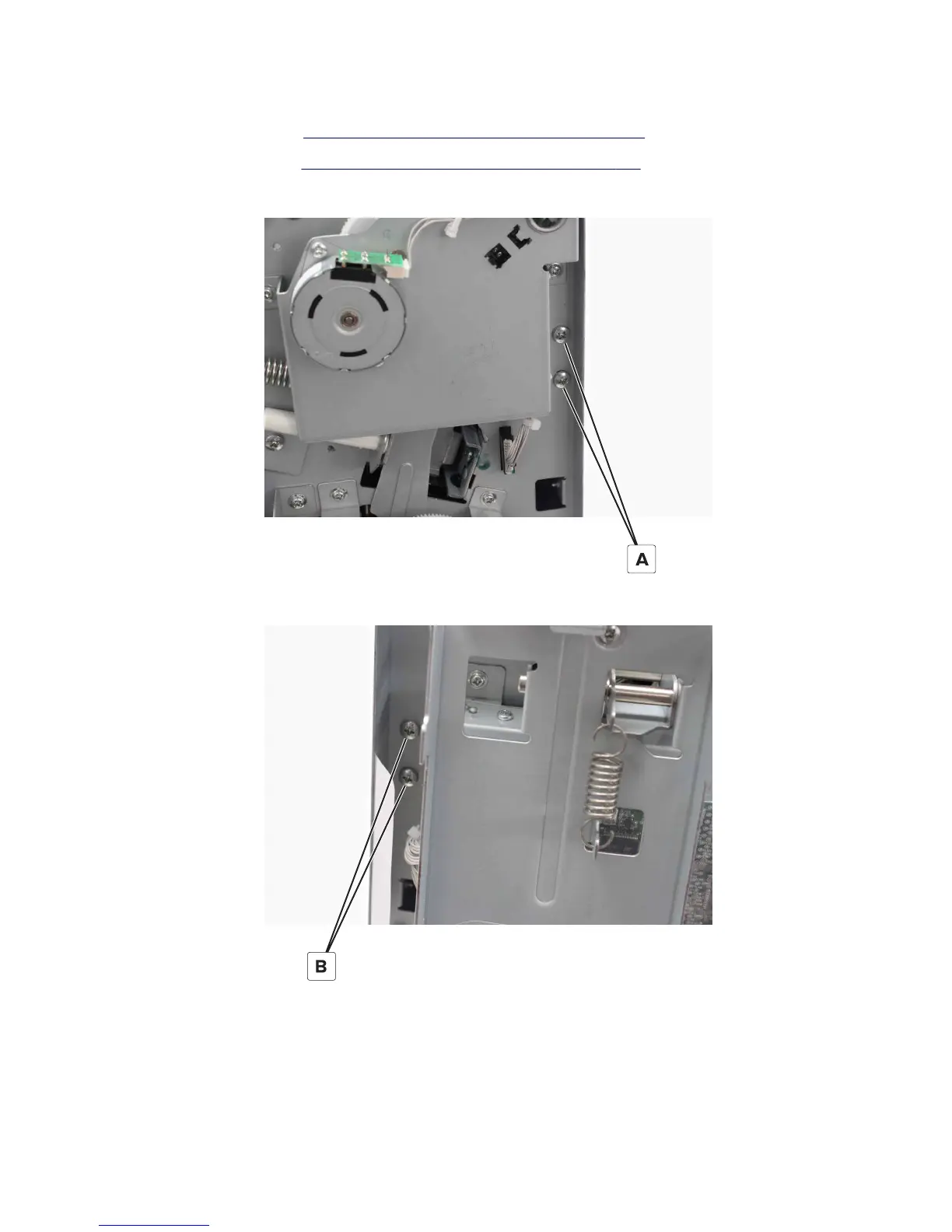

3 Remove the two screws (A).
4 Remove the two screws (B).
4021, 7421
Repair information
463
