Lexmark MS911 - Staple, Hole Punch Finisher (SHPF) Operation; SHPF Sections; SHPF Top bin Exit and Elevator bin Exit Sections

Staple, hole punch finisher (SHPF) operation

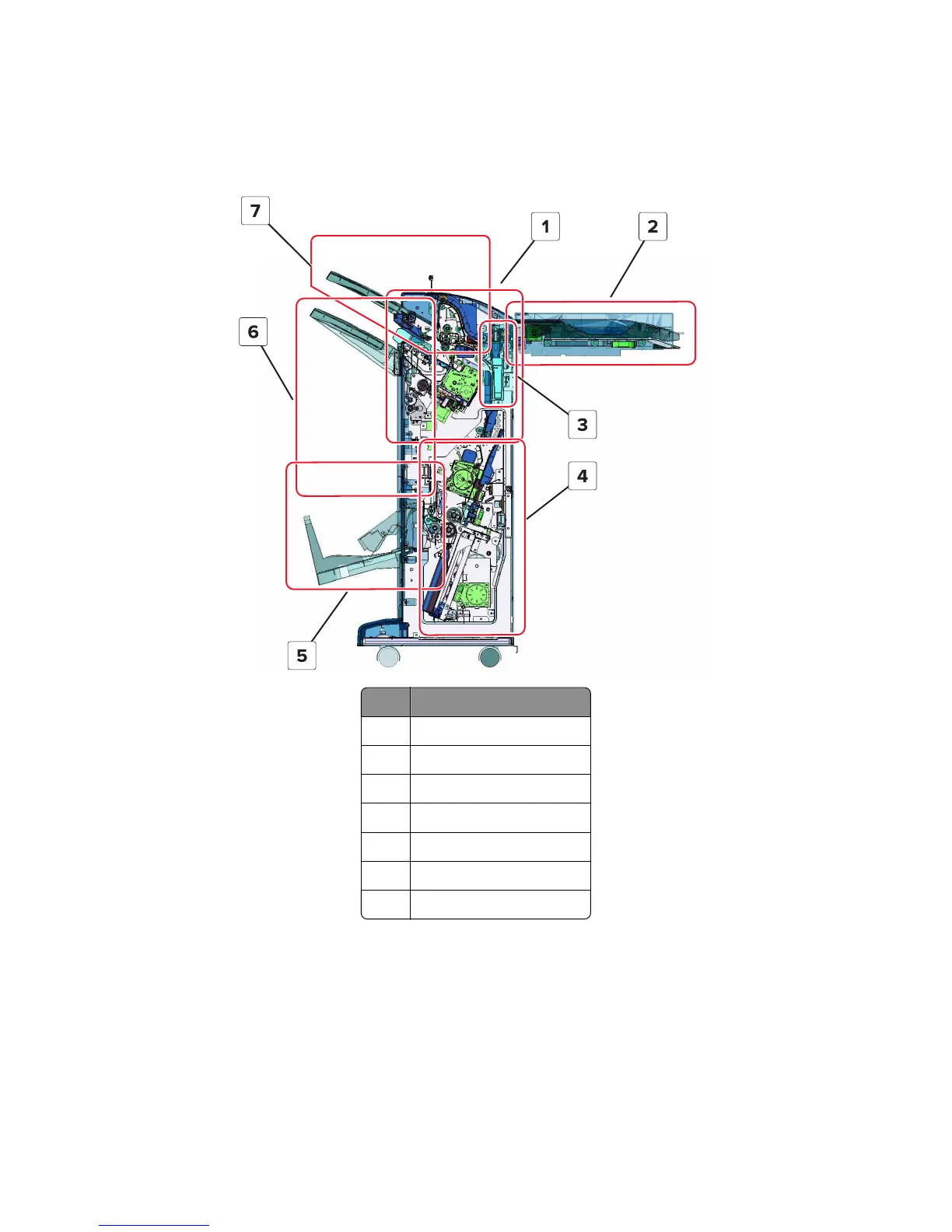

SHPF sections
# Part
1 Compiler section
2 Horizontal paper transport
3 Punch unit
4 Booklet maker
5 Booklet maker exit section
6 Elevator bin exit section
7 Top bin exit section
SHPF top bin exit and elevator bin exit sections
The motor (SHPF feed) drives the entrance roller, diverter, and top bin transport roller. The motor (SHPF transport)
drives the top bin exit roller and compiler feed roller.
The entrance roller feeds the paper from the horizontal paper transport into the finisher. The punch unit is located
between the entrance roller and diverter feed roller. If punching is required, the trailing edge of the paper is punched.
