Motor (SHPF staple unit carriage) removal
1 Remove the front door. See “SHPF front door removal” on page 336.
2 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
3 Remove the staple unit assembly. See “SHPF staple unit assembly removal” on page 367.

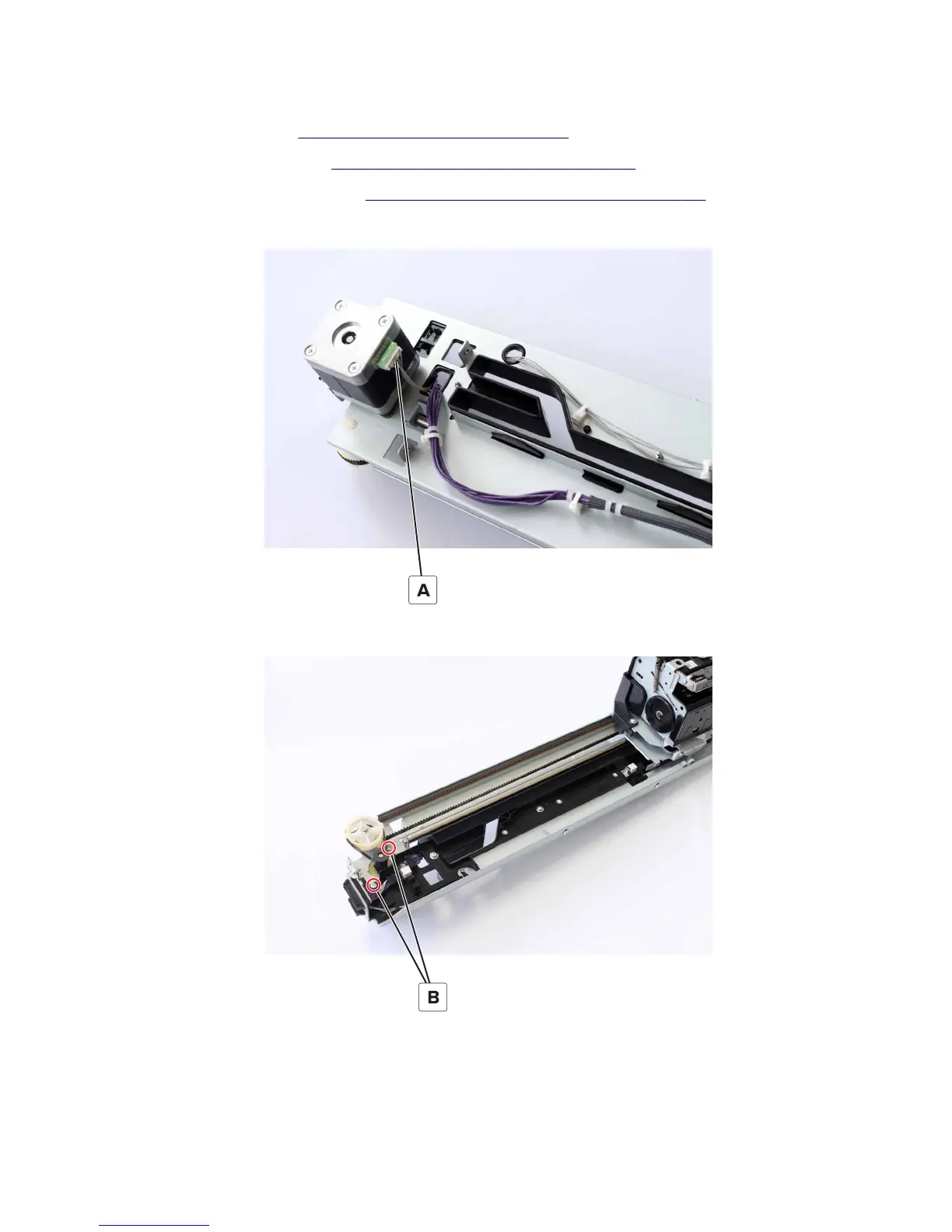

4 Disconnect the cable (A).
5 From under the motor, remove the two screws (B), and then remove the motor.
4021, 7421
Repair information
371
