Lexmark MS911 - Motor (Booklet Maker Decurl) Removal; Transport and Decurl Motor Bracket Removal

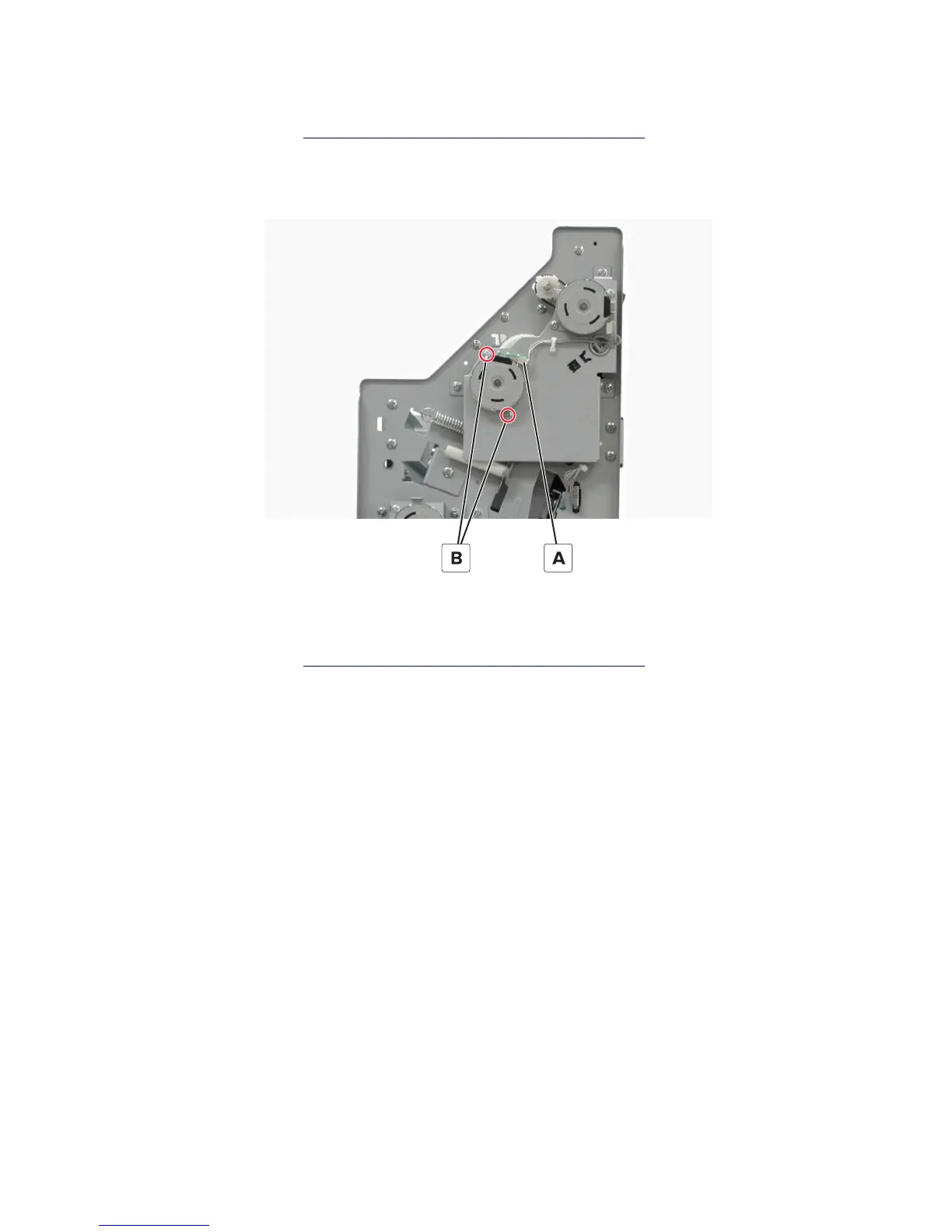

Motor (booklet maker decurl) removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Disconnect the cable (A).
3 Remove the two screws (B), and then remove the motor.
Transport and decurl motor bracket removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Disconnect the two cables (A).
4021, 7421
Repair information
479
