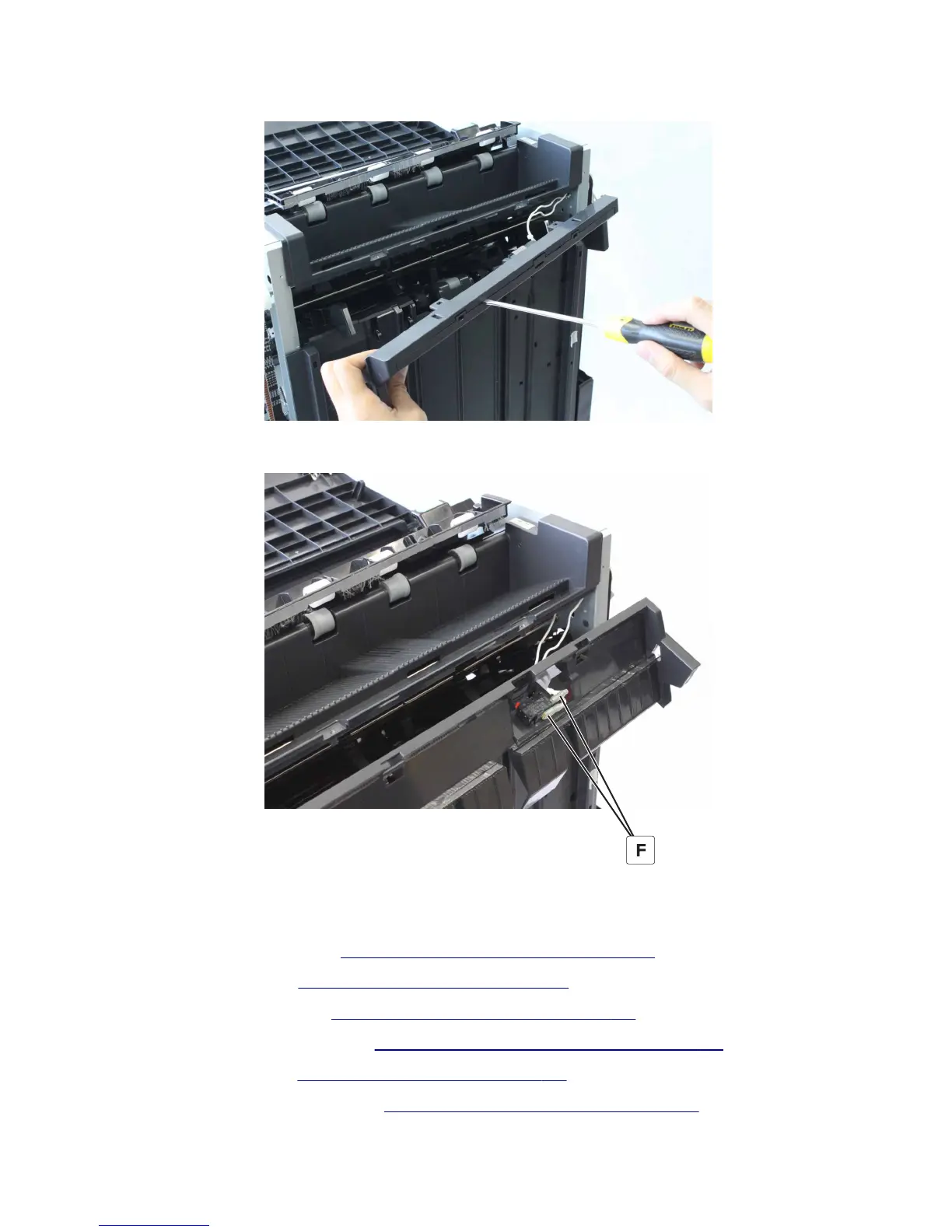

13 Pry, and then remove the cover.
14 Disconnect the two cables (F), and then remove the guide.
SHPF elevator bin stack limit switch removal
1 Remove the top bin extender. See “SHPF top bin extender removal” on page 331.
2 Remove the front door. See “SHPF front door removal” on page 336.
3 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
4 Remove the paddle motor bracket. See “SHPF paddle motor bracket removal” on page 383.
5 Remove the rear cover. See “SHPF rear cover removal” on page 339.
6 Remove the elevator motor bracket. See “Motor (SHPF elevator) removal” on page 359.
4021, 7421
Repair information
432
