Bifold lower roller removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the bifold guide motor bracket. See “Bifold guide motor bracket removal” on page 487.
3 Remove the trifold guide motor bracket. See “Trifold guide motor bracket removal” on page 489.
4 Remove the trifold knife assembly. See “Trifold knife assembly removal” on page 504.
5 Remove the trifold gate actuator. See “Trifold gate actuator removal” on page 490.
6 Remove the trifold diverter See “Trifold diverter removal” on page 514.
7 Remove the bifold upper roller. See “Bifold upper roller removal” on page 506.

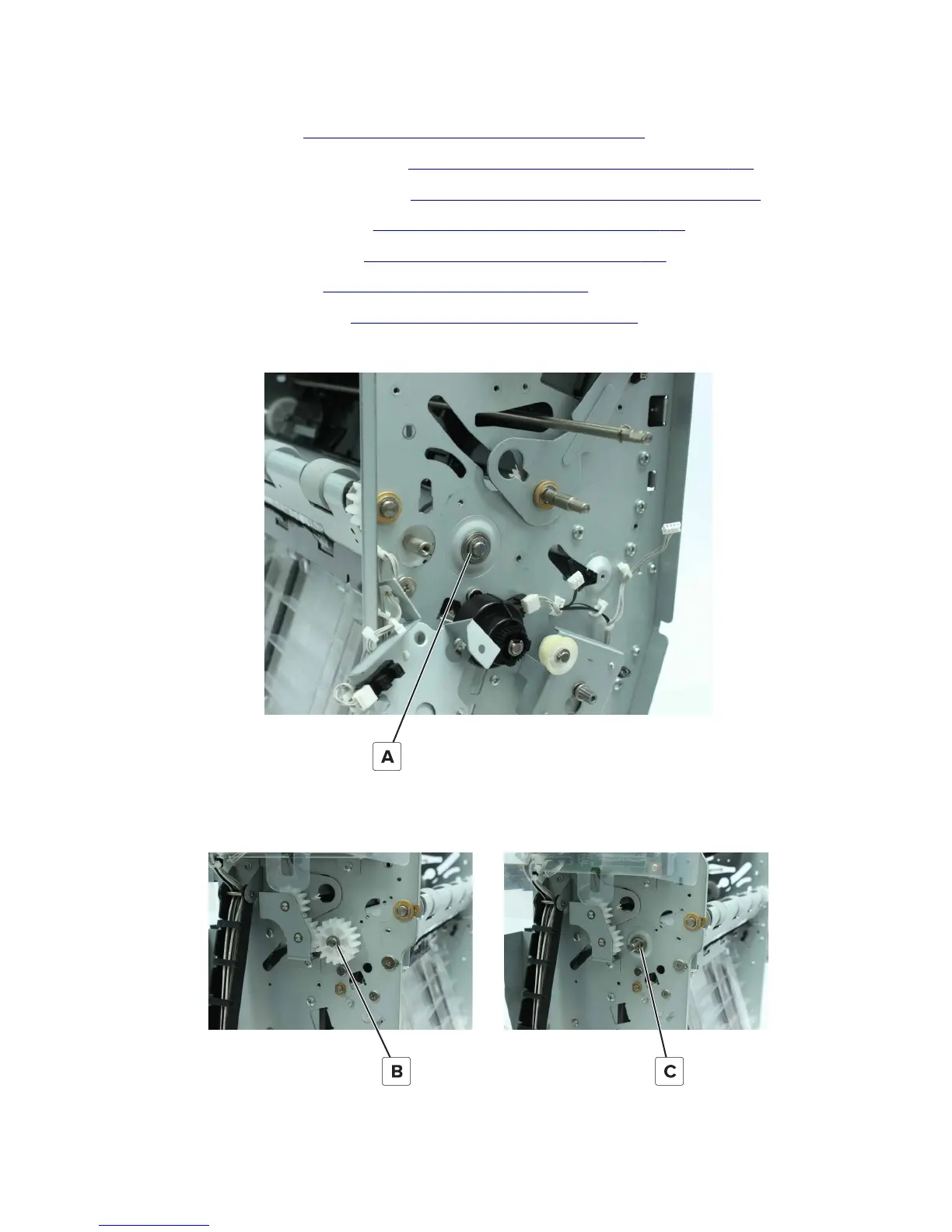

8 Remove the clip (A), and then remove the bearing.
9 Remove the clip (B), and then remove the gear.
10 Remove the clip (C), and then remove the bearing.
4021, 7421
