Lexmark MS911 - Trifold Gate Actuator Removal; Sensor (Trifold Guide Home) Removal

Trifold gate actuator removal

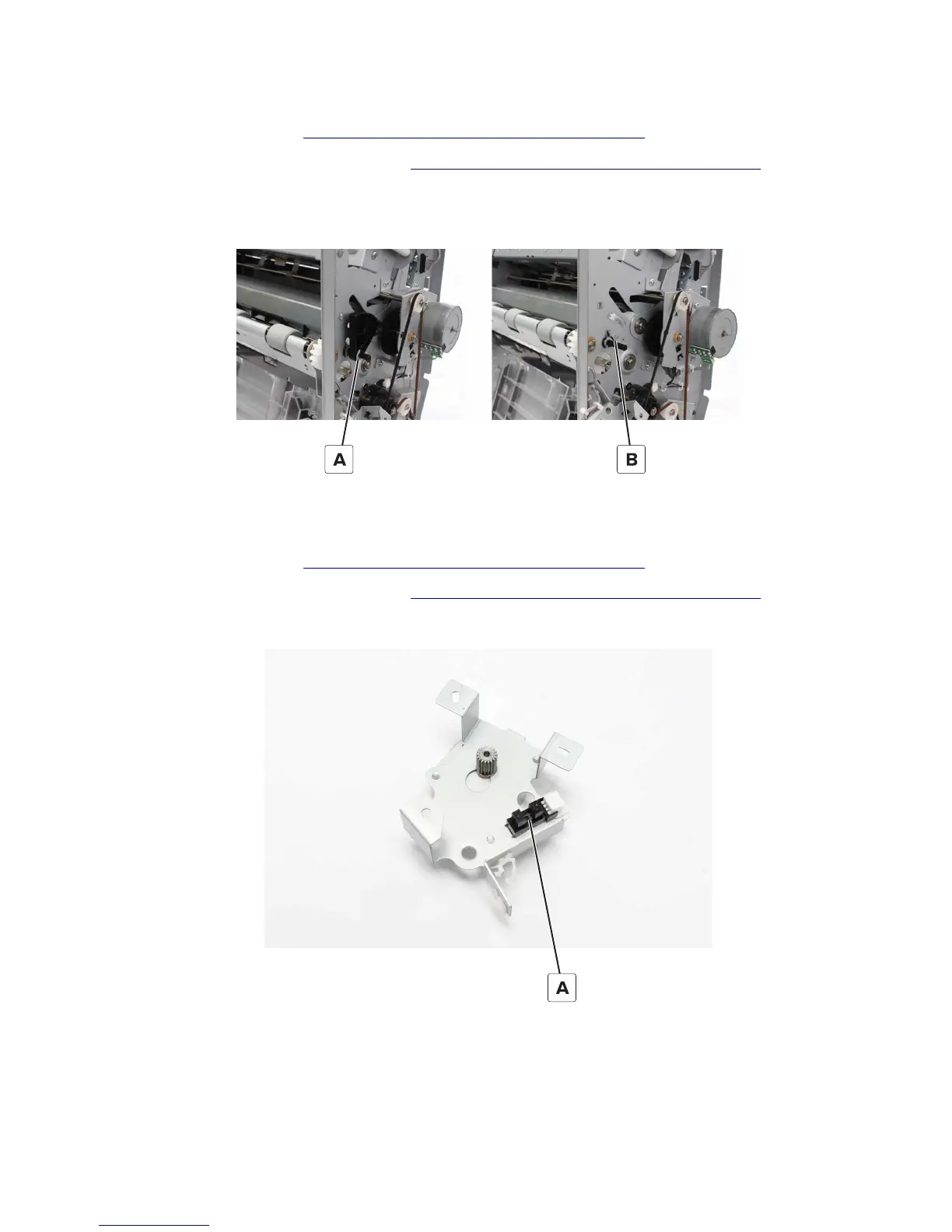

1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the trifold guide motor bracket. See “Trifold guide motor bracket removal” on page 489.
3 Remove the clip (A), and then remove the actuator.
4 Remove the pin (B).
Sensor (trifold guide home) removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the trifold guide motor bracket. See “Trifold guide motor bracket removal” on page 489.
3 Remove the sensor (A).
