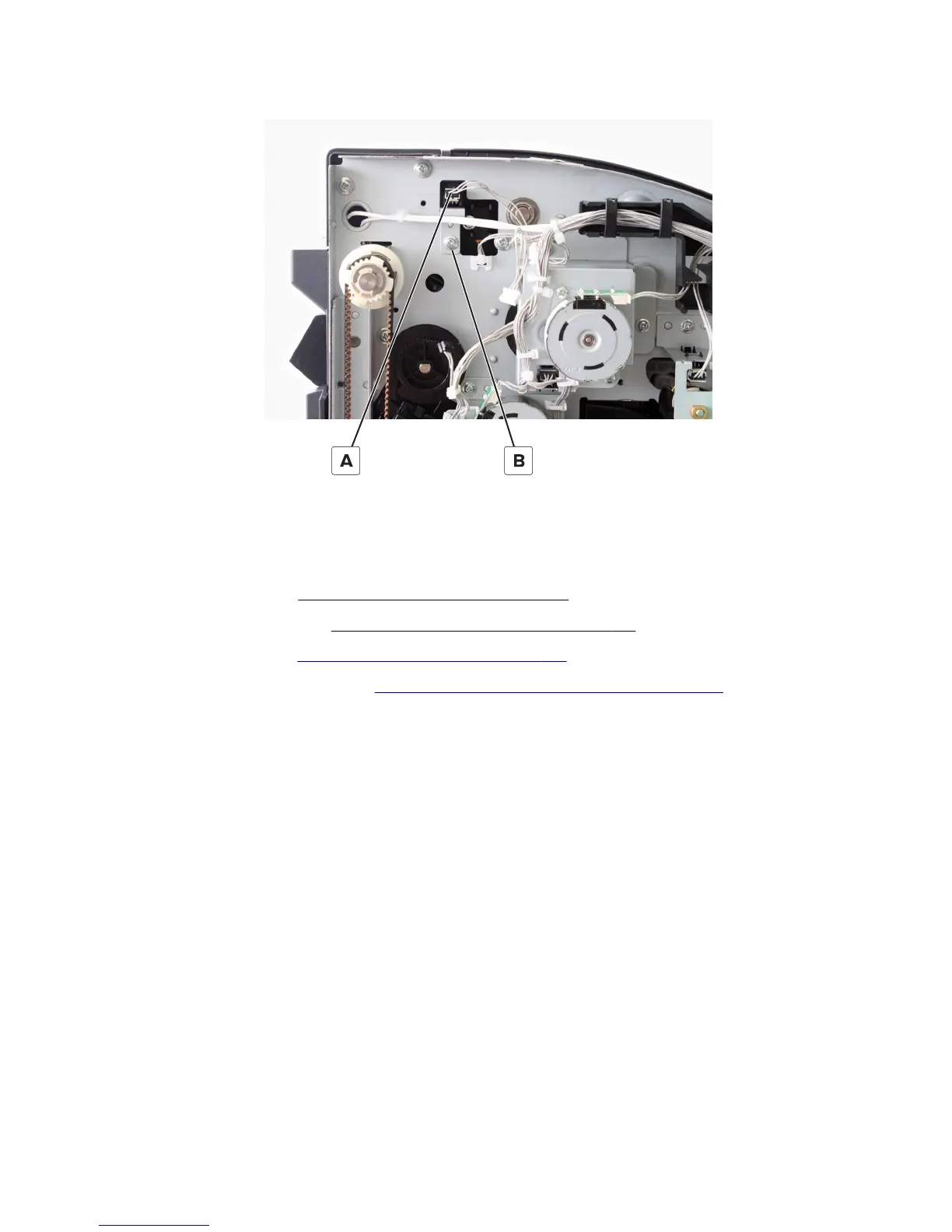

5 Remove the screw (B), and then remove the sensor bracket.
6 Disconnect the cable, and then remove the sensor from the bracket.
Sensor (SHPF top bin full, receive) removal
1 Remove the front door. See “SHPF front door removal” on page 336.
2 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
3 Remove the rear cover. See “SHPF rear cover removal” on page 339.
4 Remove the paddle motor bracket. See “SHPF paddle motor bracket removal” on page 383.
4021, 7421
