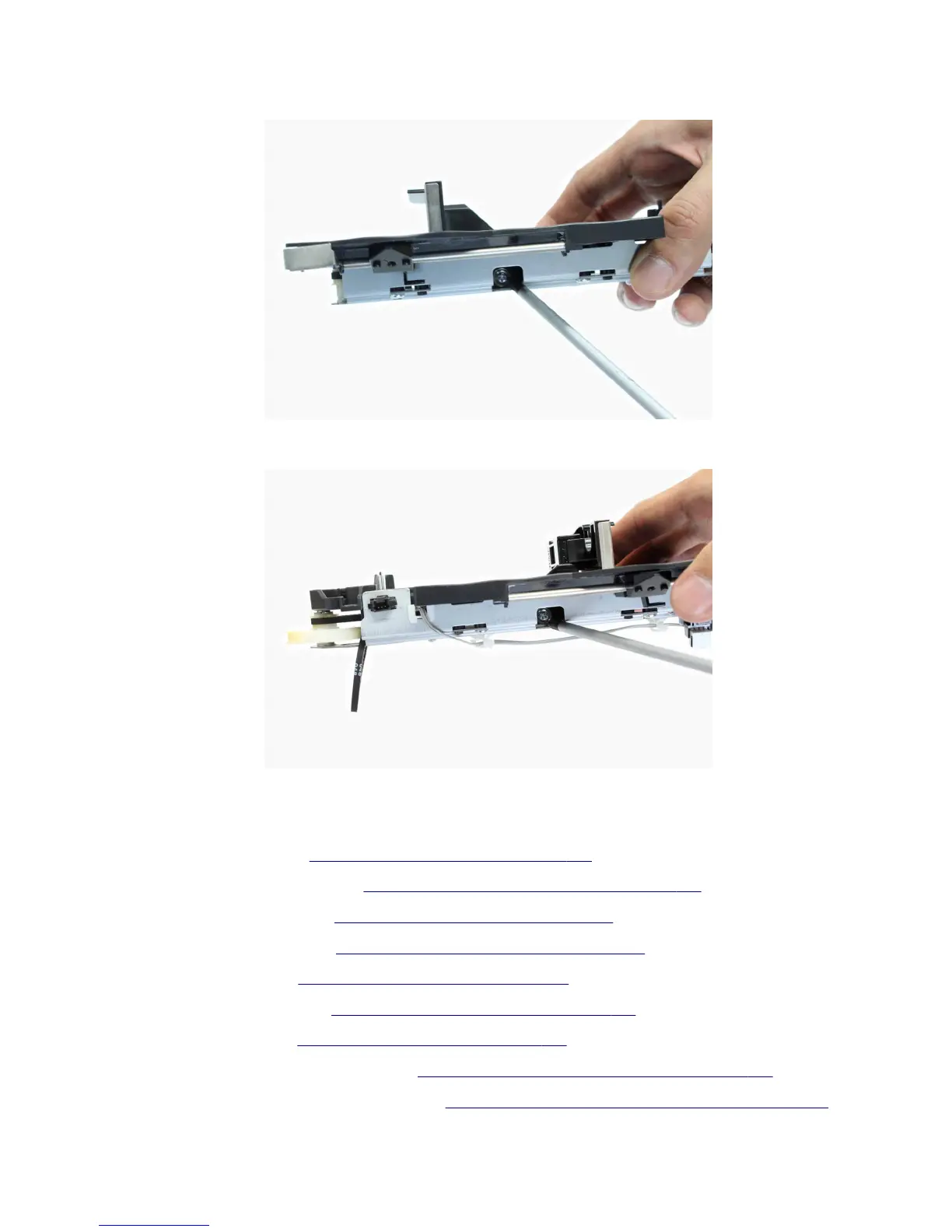

12 Remove the screw, and then remove the front tamper.
13 Remove the screw, and then remove the rear tamper.
SHPF tamper trays removal
1 Remove the elevator bin. See “SHPF elevator bin removal” on page 331.
2 Remove the elevator bin bracket. See “SHPF elevator bin bracket removal” on page 332.
3 Remove the lower left cover. See “Lower left cover removals” on page 344.
4 Remove the upper left cover. See “SHPF upper left cover removal” on page 348.
5 Remove the front door. See “SHPF front door removal” on page 336.
6 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
7 Remove the rear cover. See “SHPF rear cover removal” on page 339.
8 Remove the motor (SHPF compiler eject). See “Motor (SHPF compiler eject) removal” on page 399.
9 Remove the motor (SHPF compiler pre-eject). See “Motor (SHPF compiler pre-eject) removal” on page 400.
4021, 7421
Repair information
411
