Lexmark MS911 - Middle Frame Brace Removal

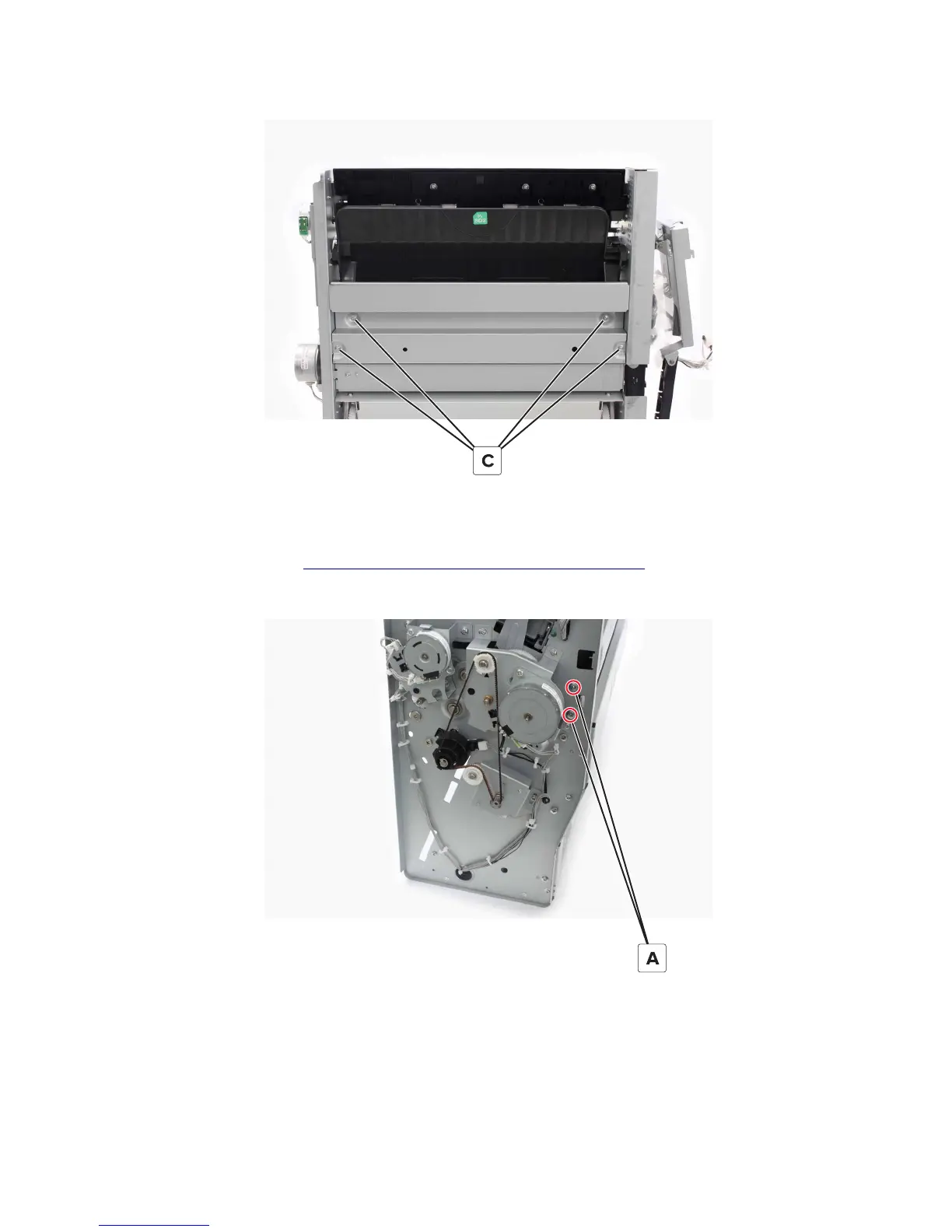

5 Remove the four screws (C), and then remove the brace.
Middle frame brace removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the two screws (A).
4021, 7421
Repair information
464
