Lexmark MS911 - SHPF Staple Unit Assembly Removal

SHPF staple unit assembly removal
1 Remove the front door. See “SHPF front door removal” on page 336.
2 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.

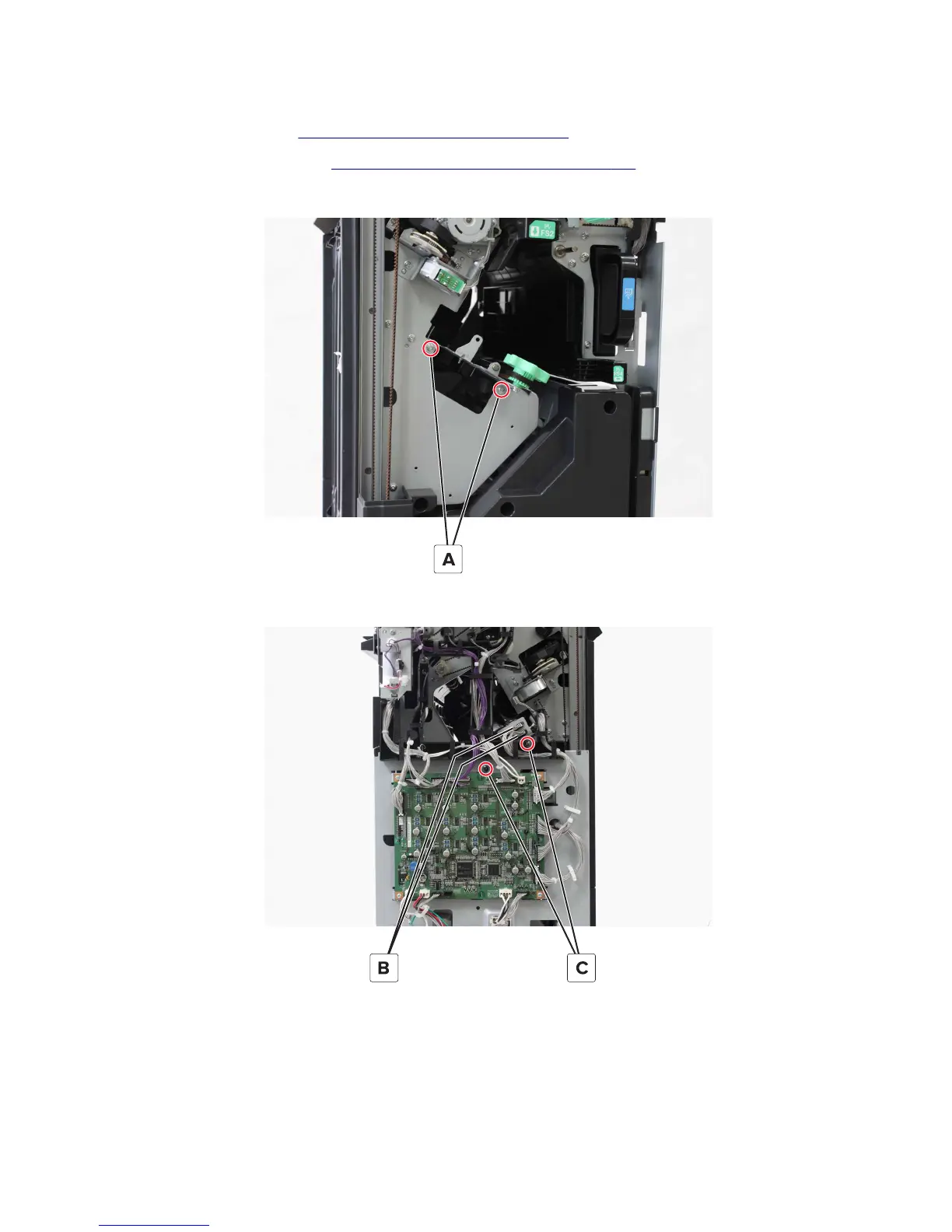

3 Remove the two screws (A).
4 Disconnect the two cables (B), and then remove the two screws (C).
4021, 7421
Repair information
367
