Lexmark MS911 - HPT Door Hinges Removal

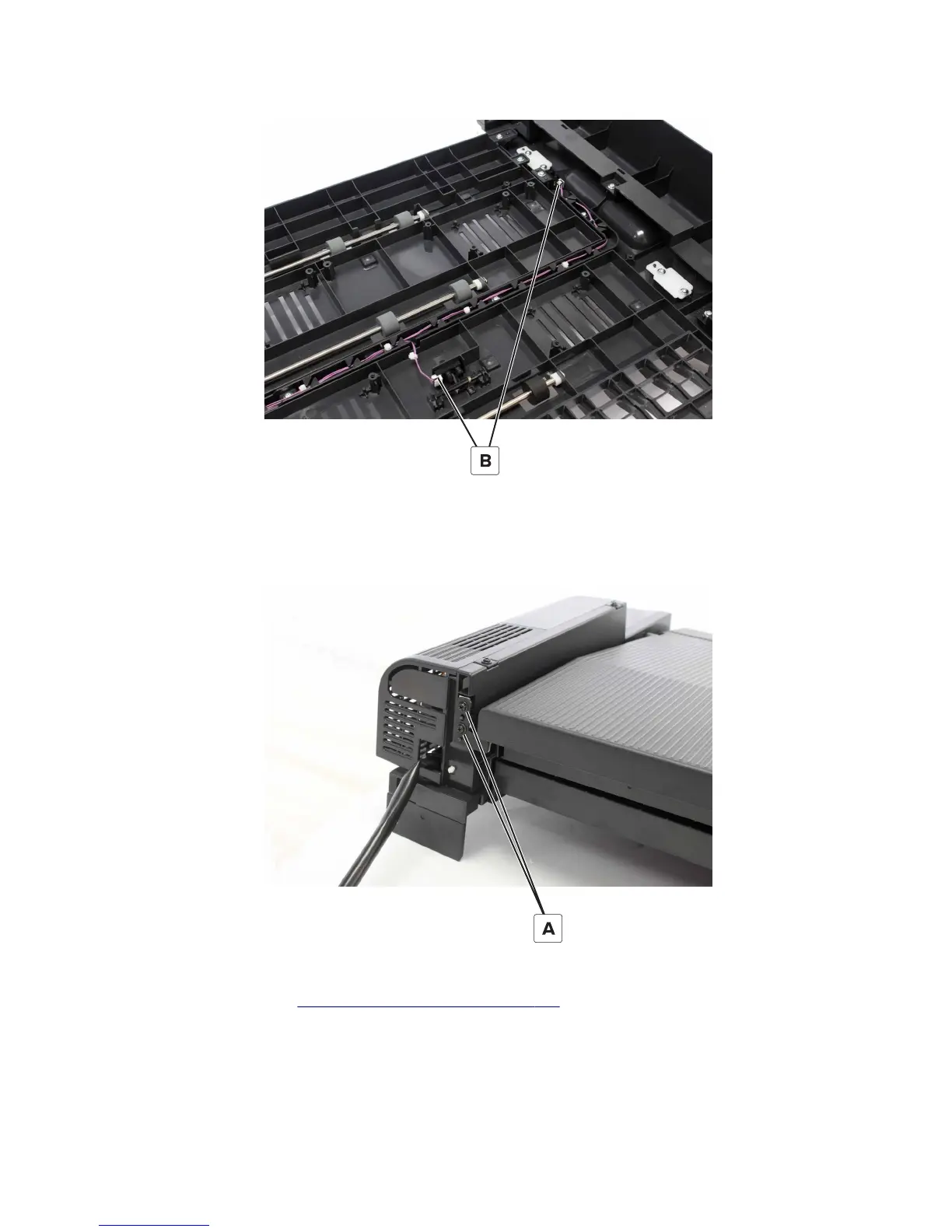

3 Disconnect the cable from the two sensors (B), and then remove the cable.
HPT door hinges removal
1 Remove the two screws (A).
2 Remove the hinge, and then remove the door.
3 Remove the rear cover. See “HPT rear cover removal” on page 325.
4021, 7421
Repair information
326
