Booklet maker aligner middle paper guide removal
1 Remove the aligner jam access cover. See “Booklet maker aligner jam access door removal” on page 460.
2 Remove the front cover. See “Booklet maker front cover removal” on page 456.
3 Remove the right cover. See “Booklet maker right cover removal” on page 457.
4 Remove the aligner assembly. See “Booklet maker aligner assembly removal” on page 496.
5 Remove the aligner. See “Booklet maker aligner removal” on page 498.

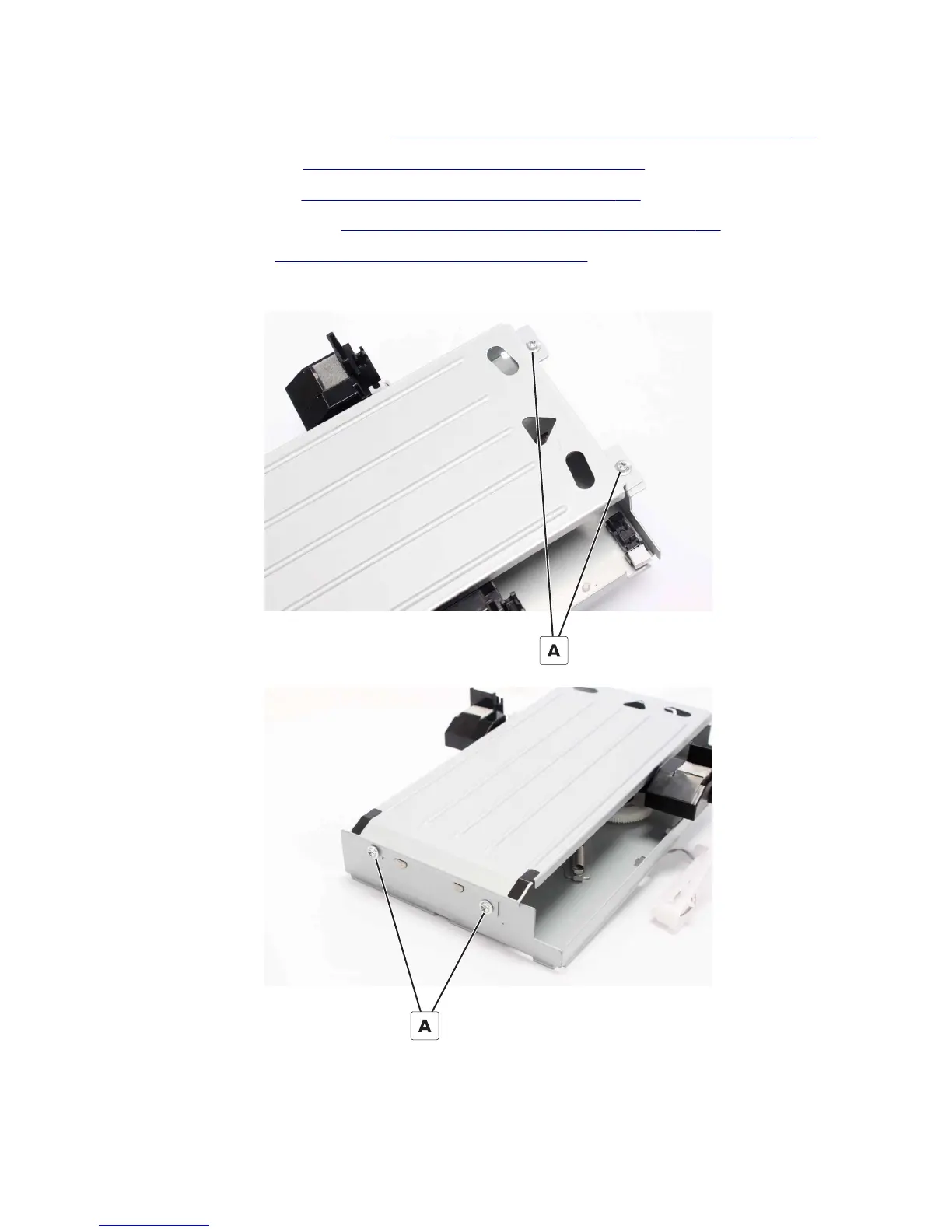

6 Remove the four screws (A), and then remove the guide.
4021, 7421
Repair information
499
