Lexmark MS911 - HPBF bin Bail Removal; SHPF Lower Cover Removal; SHPF Caster Wheel Removal

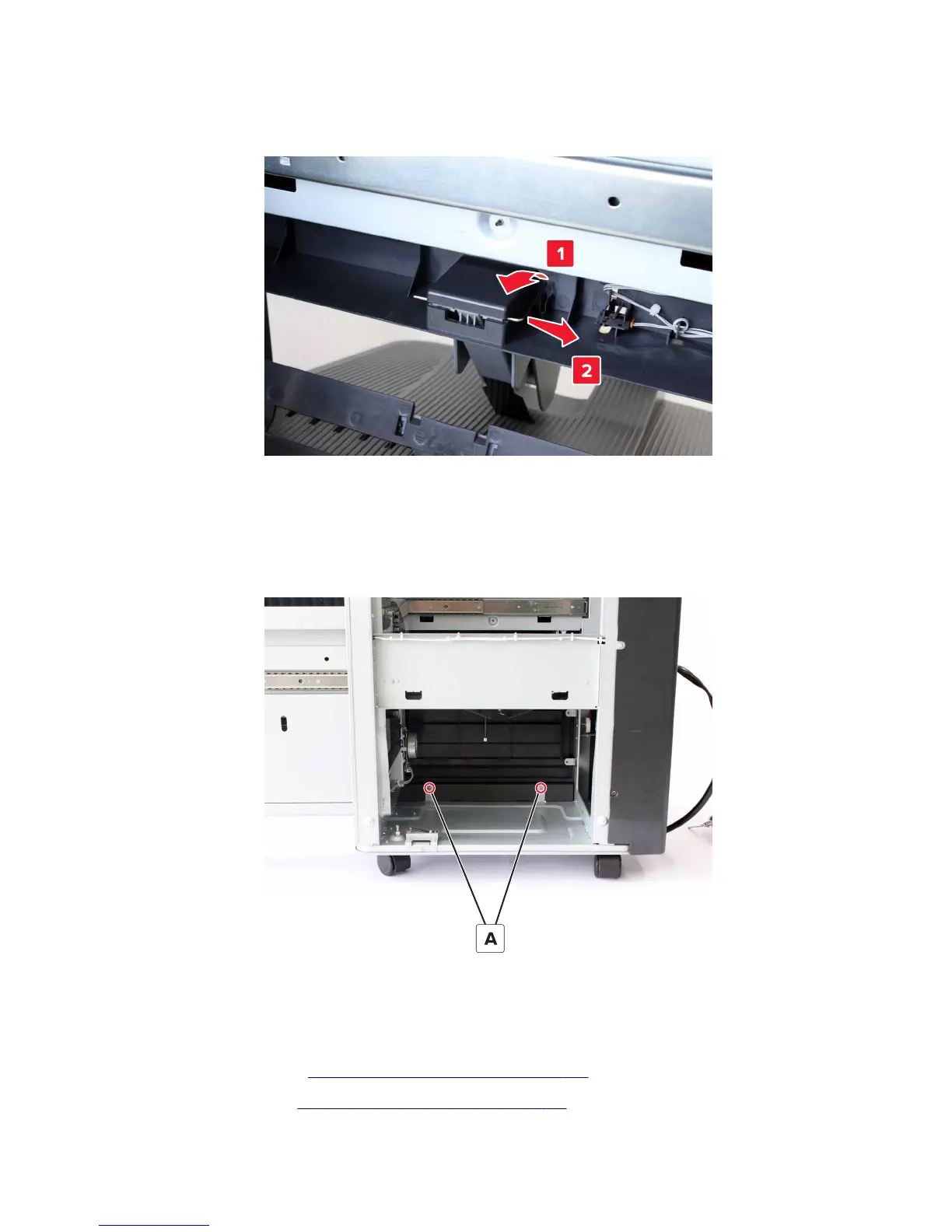

HPBF bin bail removal
1 Unlatch and then remove the lock.
2 Remove the bail.
SHPF lower cover removal
1 Remove the two screws (A).
2 Remove the cover.
SHPF caster wheel removal
1 Remove the lower cover. See “SHPF lower cover removal” on page 333.
2 Remove the rear cover. See “SHPF rear cover removal” on page 339.
4021, 7421
Repair information
333
