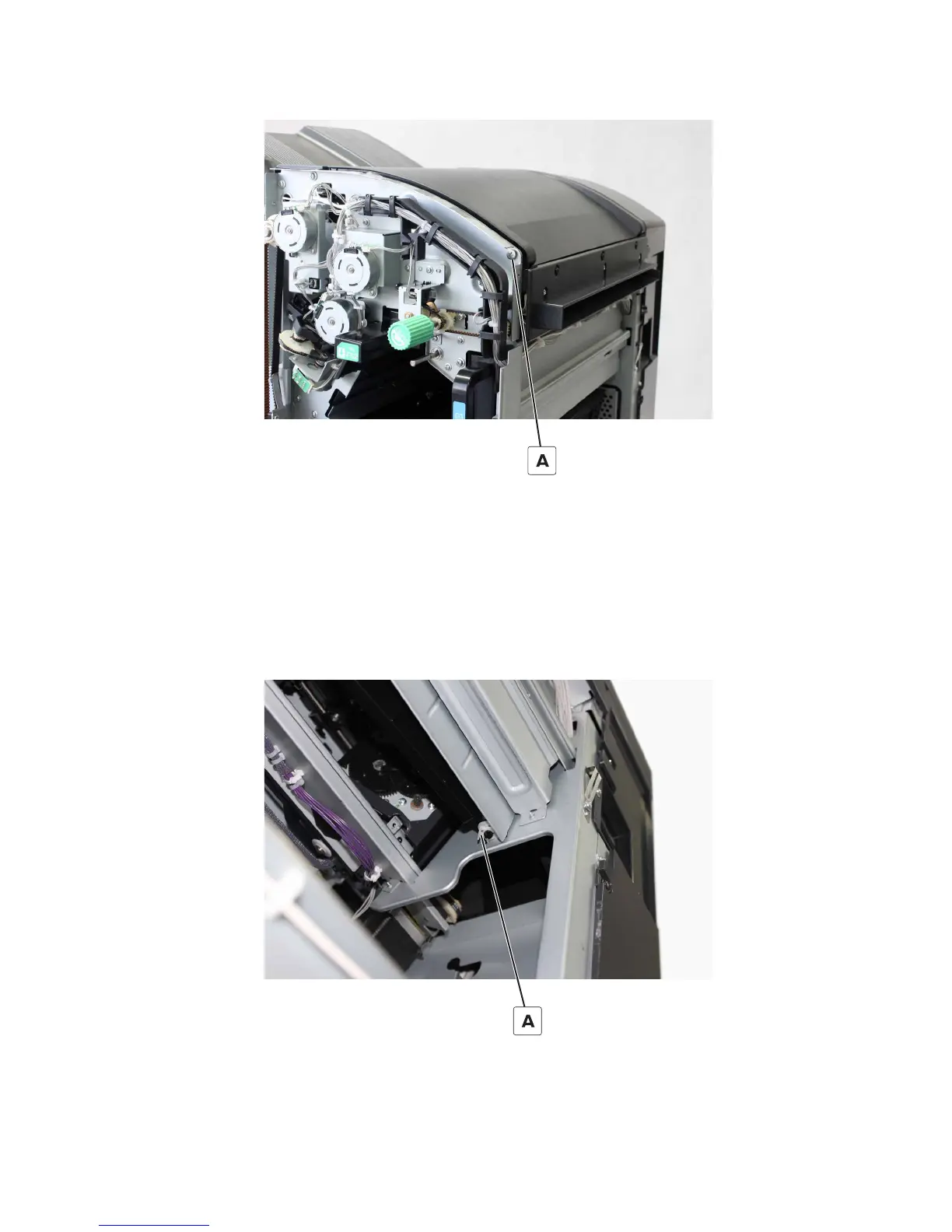

3 Remove the screw (A), and then remove the door.
Booklet gate jam access door removal
1 Open the front door.
2 Turn the staple carriage knob to move the carriage to the rear.
3 Release the jam access door from the magnetic catch.
4 From the bottom right, remove the clip (A) from the door tab.
5 Remove the door.
4021, 7421
Repair information
340
