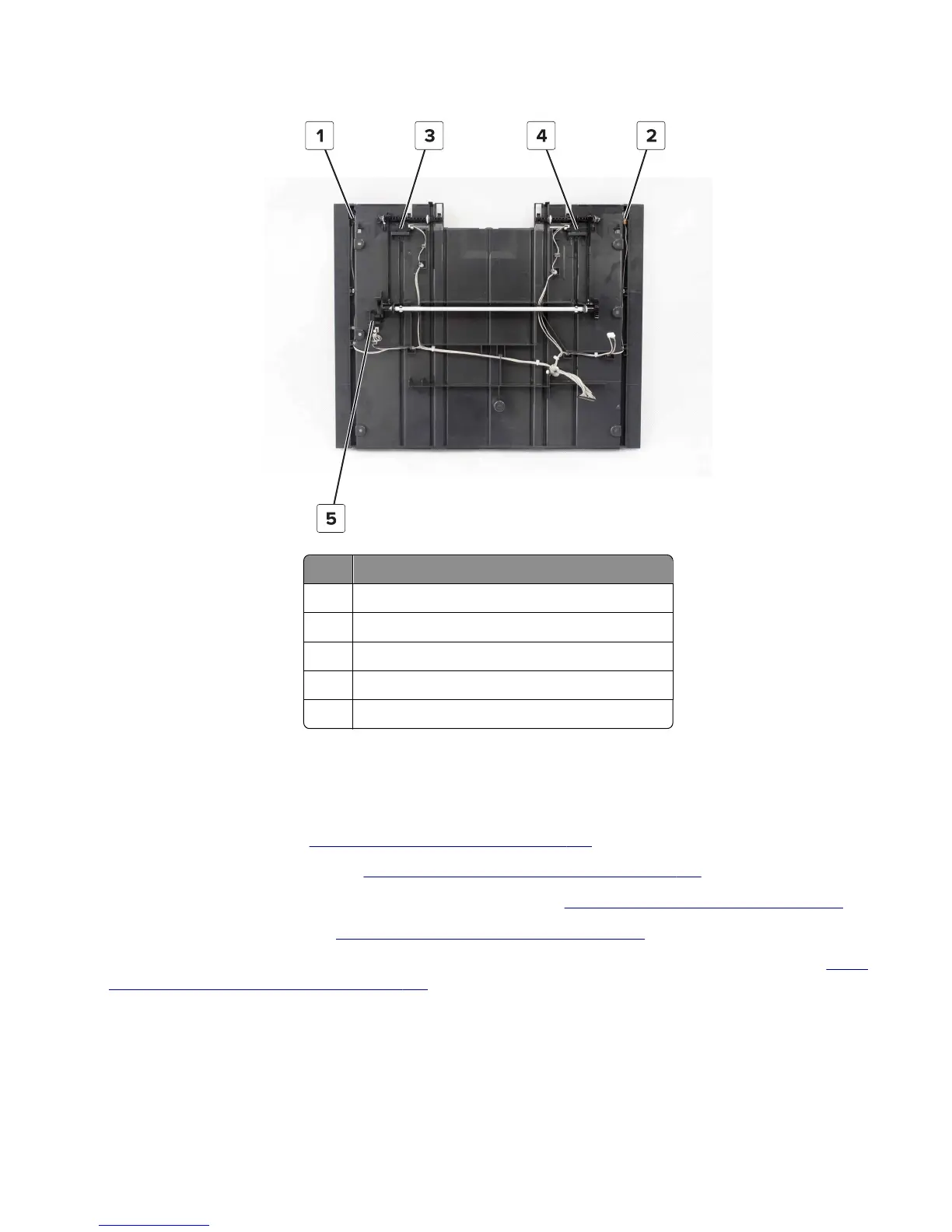

5 Remove the appropriate sensor.
# Part
1 Sensor (SHPF elevator bin stack height, receive)
2 Sensor (SHPF elevator bin stack height, transmit)
3 Sensor (SHPF elevator bin front stack height)
4 Sensor (SHPF elevator bin rear stack height)
5 Sensor (SHPF bin lever control)
SHPF elevator bin stack height sensor actuator removal
Note: Shown is the removal of the front actuator. The same instructions apply when removing the rear actuator.
1 Remove the elevator bin. See “SHPF elevator bin removal” on page 331.
2 Remove the elevator bin bracket. See “SHPF elevator bin bracket removal” on page 332.
3 Remove the HBPF lower left cover or the SHPF lower left cover. See “Lower left cover removals” on page 344.
4 Remove the upper left cover. See “SHPF upper left cover removal” on page 348.
5 Remove the sensor (SHPF elevator bin front stack height) or sensor (SHPF elevator bin rear stack height). See “SHPF
upper left cover sensors removal” on page 349.
6 Remove the finger (A).
7 Release the spring (B) from the holder.
8 Remove the clip (C), and then slide the bushing.
4021, 7421
Repair information
350
