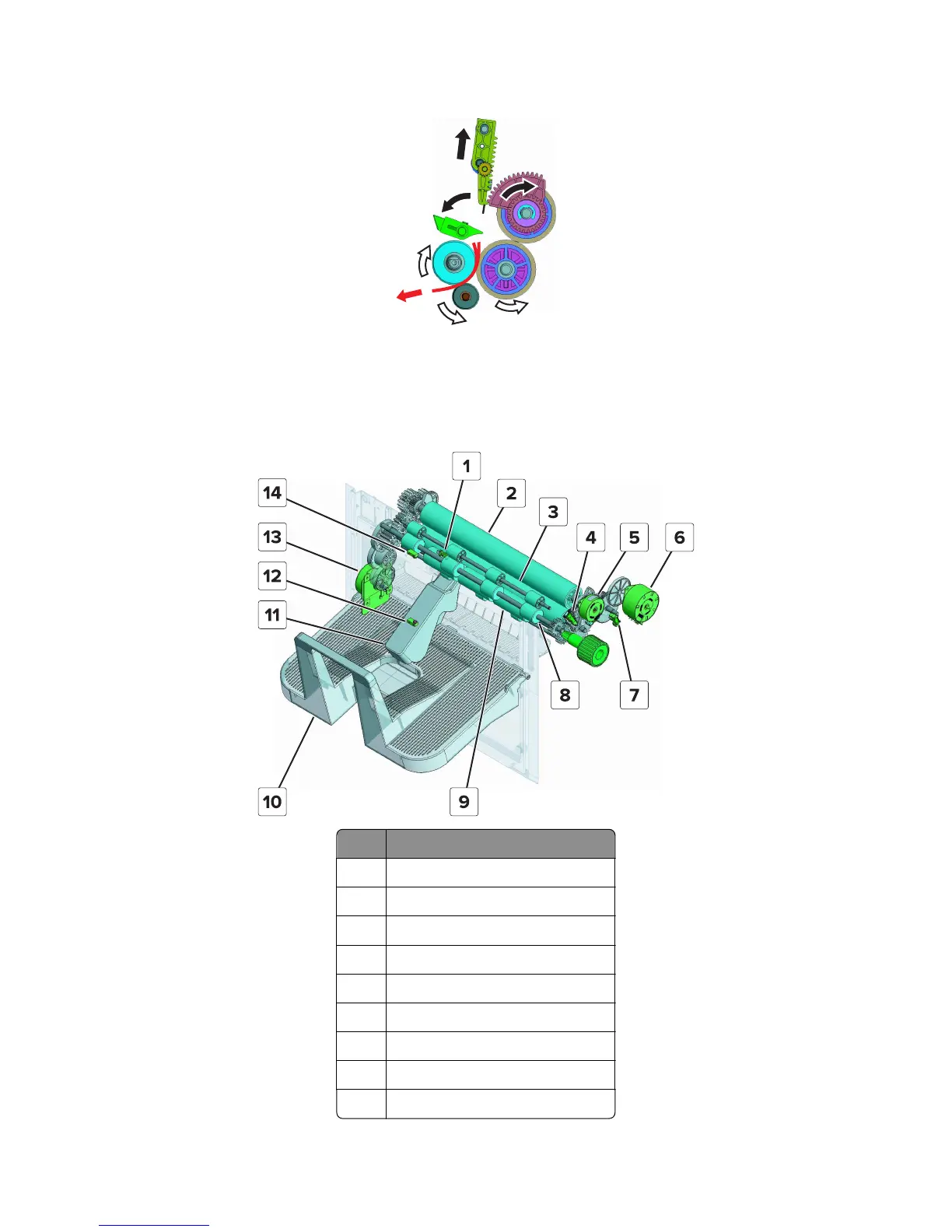

The paper is fed to the trifold roller for the second fold, and then the trifold diverter returns to the home position.
Booklet maker exit section
Booklet maker exit section parts
# Part
1 Sensor (booklet maker fold exit)
2 Bifold top roller
3 Bifold bottom roller
4 Sensor (trifold guide home)
5 Motor (trifold guide)
6 Motor (bifold guide)
7 Sensor (bifold guide home)
8 Exit roller
9 Trifold roller
4021, 7421
Appendix C: Theory of operation
676
