Sensor (hole punch box full) removal
1 Remove the rear cover. See “SHPF rear cover removal” on page 339.
2 Remove the punch unit. See “Punch unit removal” on page 365.

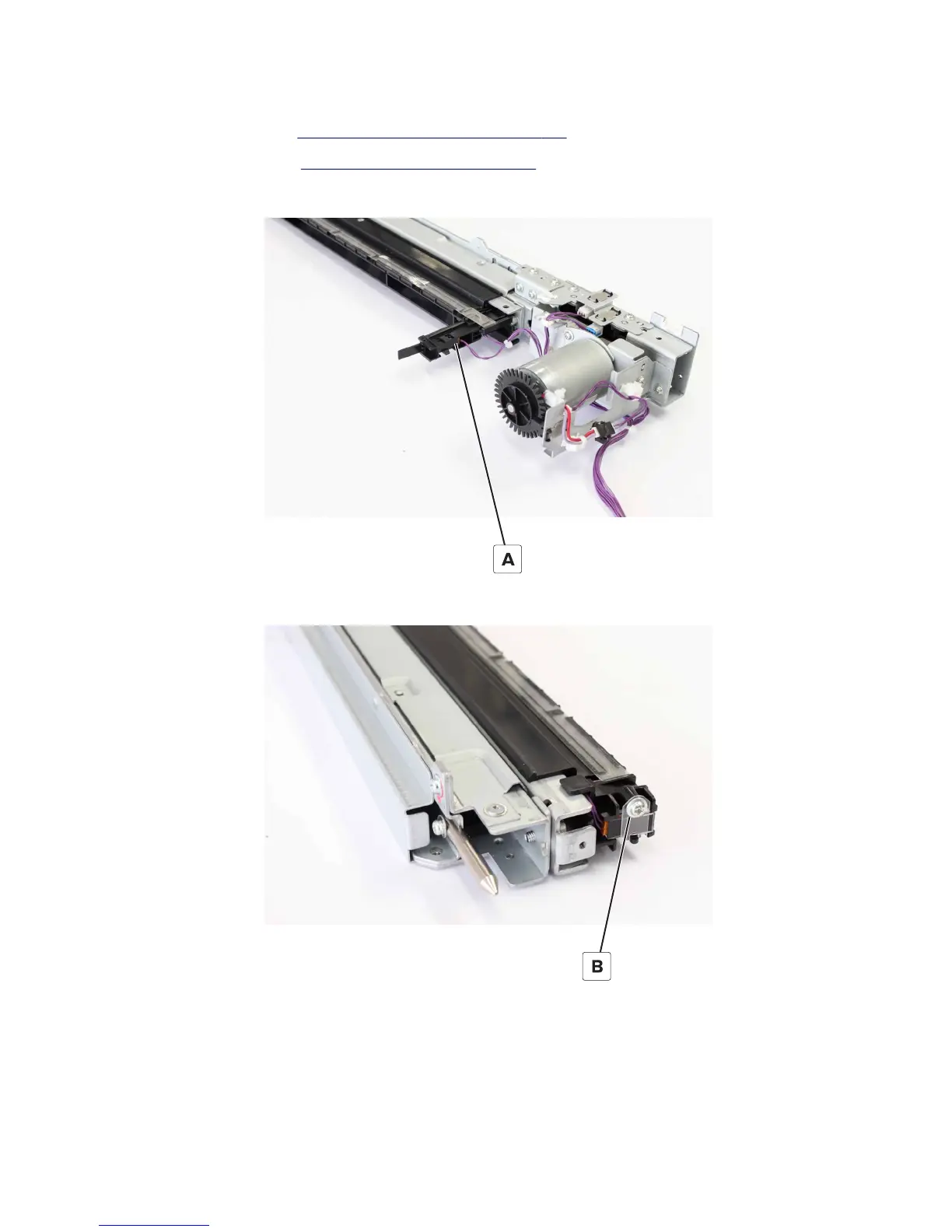

3 Disconnect the cable (A), and then remove the sensor.
4 Remove the screw (B), remove the plastic sheet, and then remove the sensor.
5 Disconnect the sensor from the cable.
