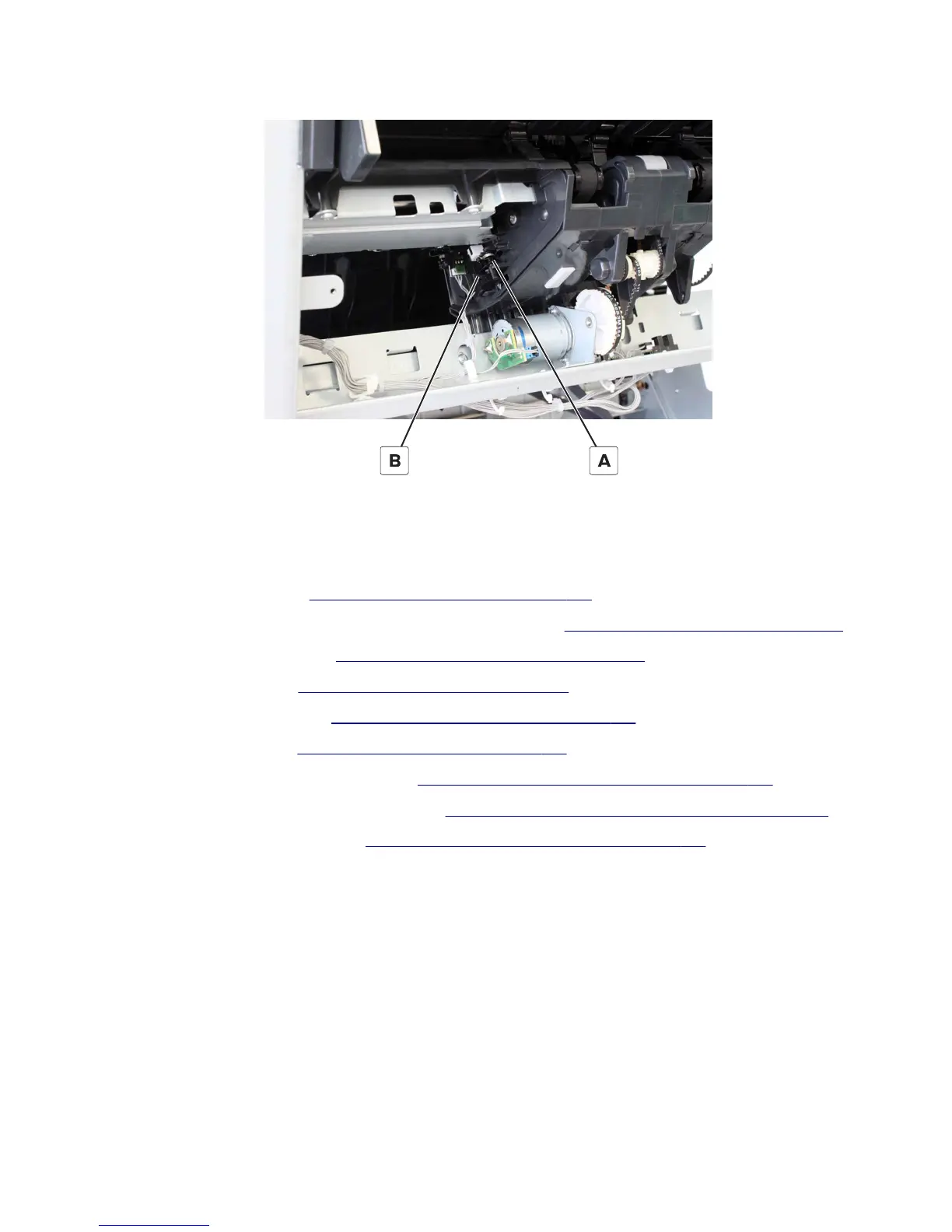

6 Release the latch (B), and then remove the sensor.
7 Disconnect the cable from the sensor.
SHPF compiler assembly removal
1 Remove the elevator bin. See “SHPF elevator bin removal” on page 331.
2 Remove the HBPF lower left cover or the SHPF lower left cover. See “Lower left cover removals” on page 344.
3 Remove the upper left cover. See “SHPF upper left cover removal” on page 348.
4 Remove the front door. See “SHPF front door removal” on page 336.
5 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
6 Remove the rear cover. See “SHPF rear cover removal” on page 339.
7 Remove the motor (SHPF compiler eject). See “Motor (SHPF compiler eject) removal” on page 399.
8 Remove the motor (SHPF compiler pre-eject). See “Motor (SHPF compiler pre-eject) removal” on page 400.
9 Remove the staple unit assembly. See “SHPF staple unit assembly removal” on page 367.
4021, 7421
Repair information
403
