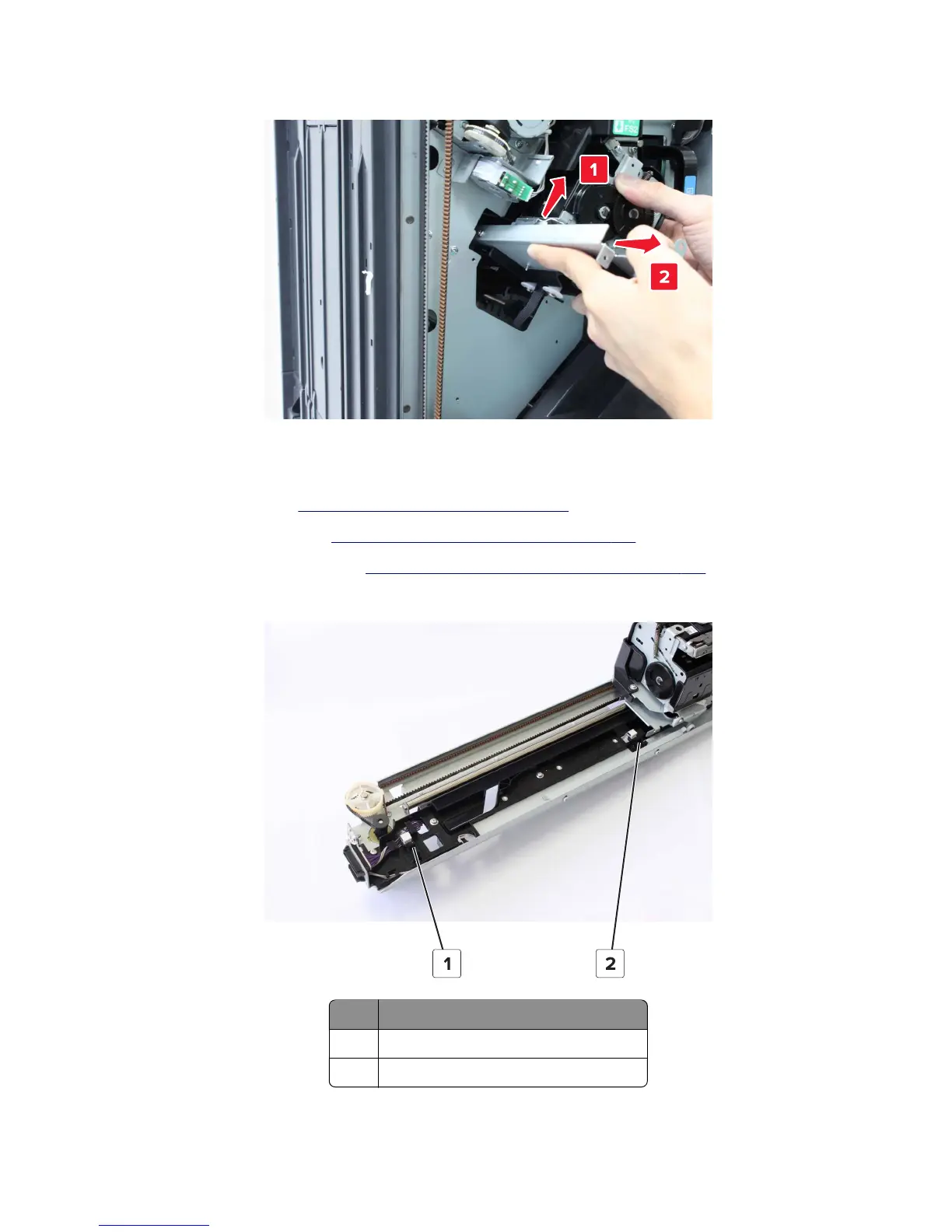

7 Lift the assembly until the cables on the bottom clear the finisher frame, and then remove the assembly.
SHPF staple unit position sensors removal
1 Remove the front door. See “SHPF front door removal” on page 336.
2 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
3 Remove the staple unit assembly. See “SHPF staple unit assembly removal” on page 367.
4 Remove the appropriate sensor.
# Part
1 Sensor (SHPF staple unit carriage home)
2 Sensor (SHPF staple unit carriage center)
4021, 7421
Repair information
369
