Installation notes:

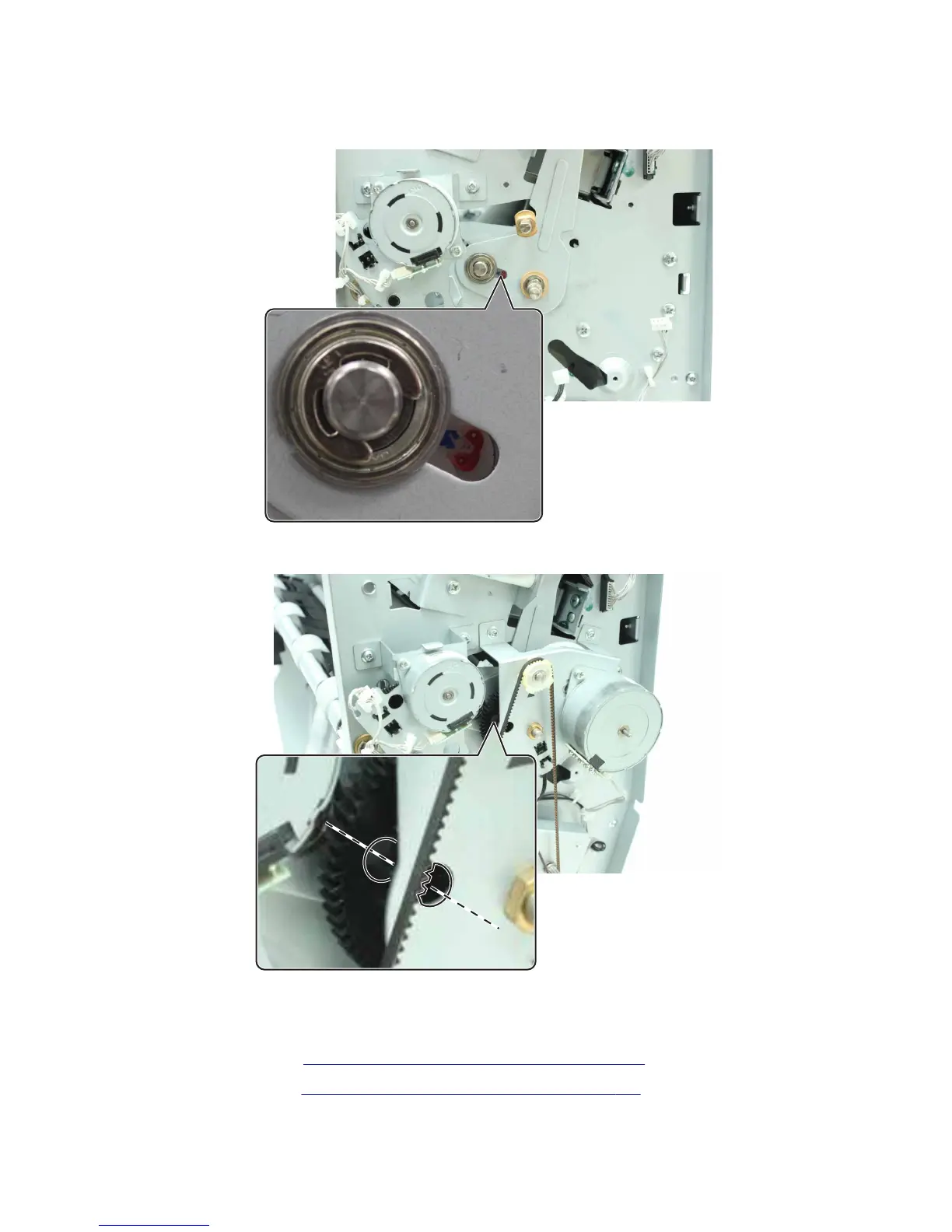

a Show the marks on the inner gears through the hole, and then align the colors.
b Align the hole on the gear with the hole on the motor bracket.
Booklet maker tamper tray removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the right cover. See “Booklet maker right cover removal” on page 457.
4021, 7421
Repair information
527
