Lexmark MS911 - Sensor (Staple Finisher Upper Exit Roller) Removal

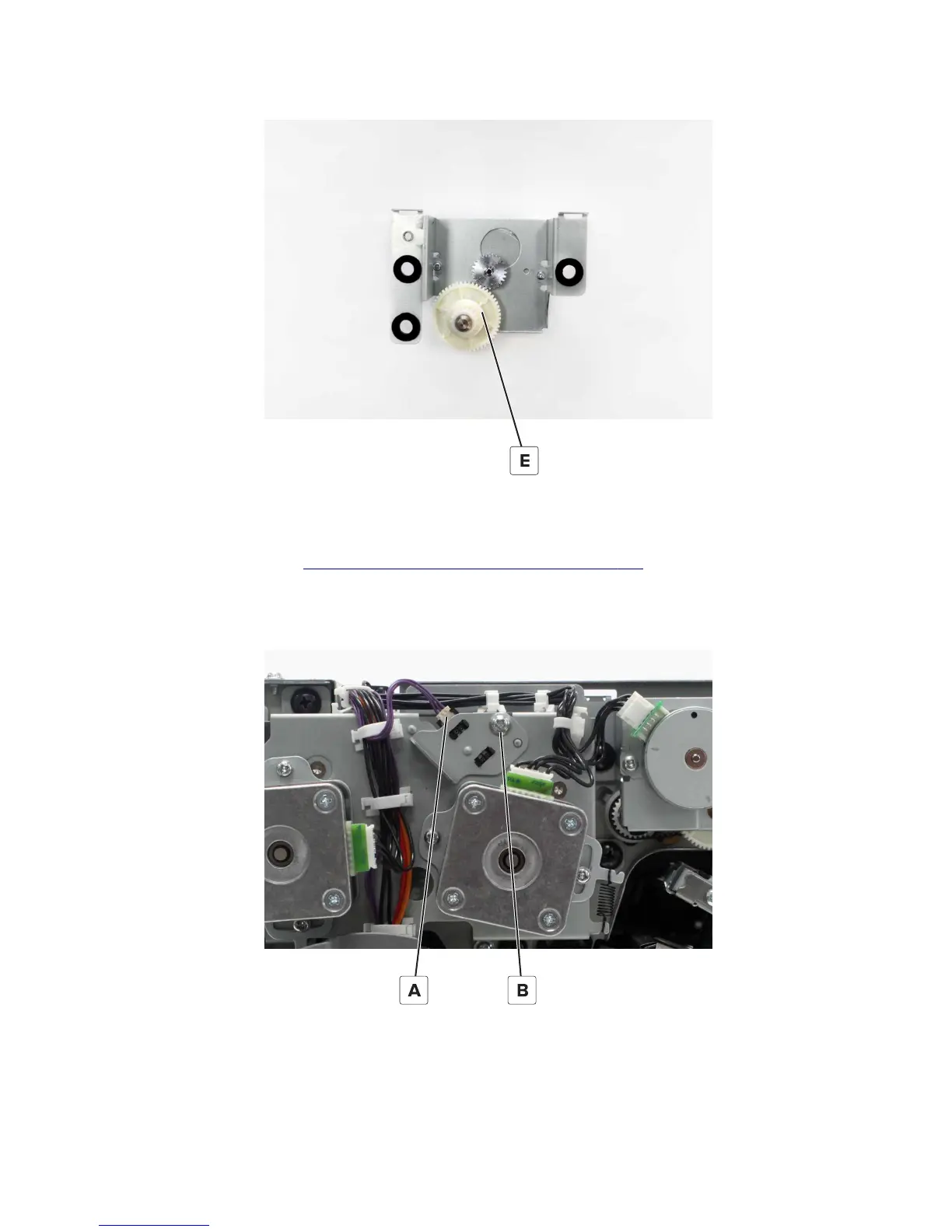

6 Remove the gear (E).
Sensor (staple finisher upper exit roller) removal
1 Remove the front cover. See “Staple finisher front cover removal” on page 229.
2 Disconnect the cable (A).
3 Remove the screw (B), and then remove the sensor bracket.
4 Remove the sensor from the bracket.
4021, 7421
Repair information
256
