Lexmark MS911 - Staple Finisher Upper Exit Actuator Removal

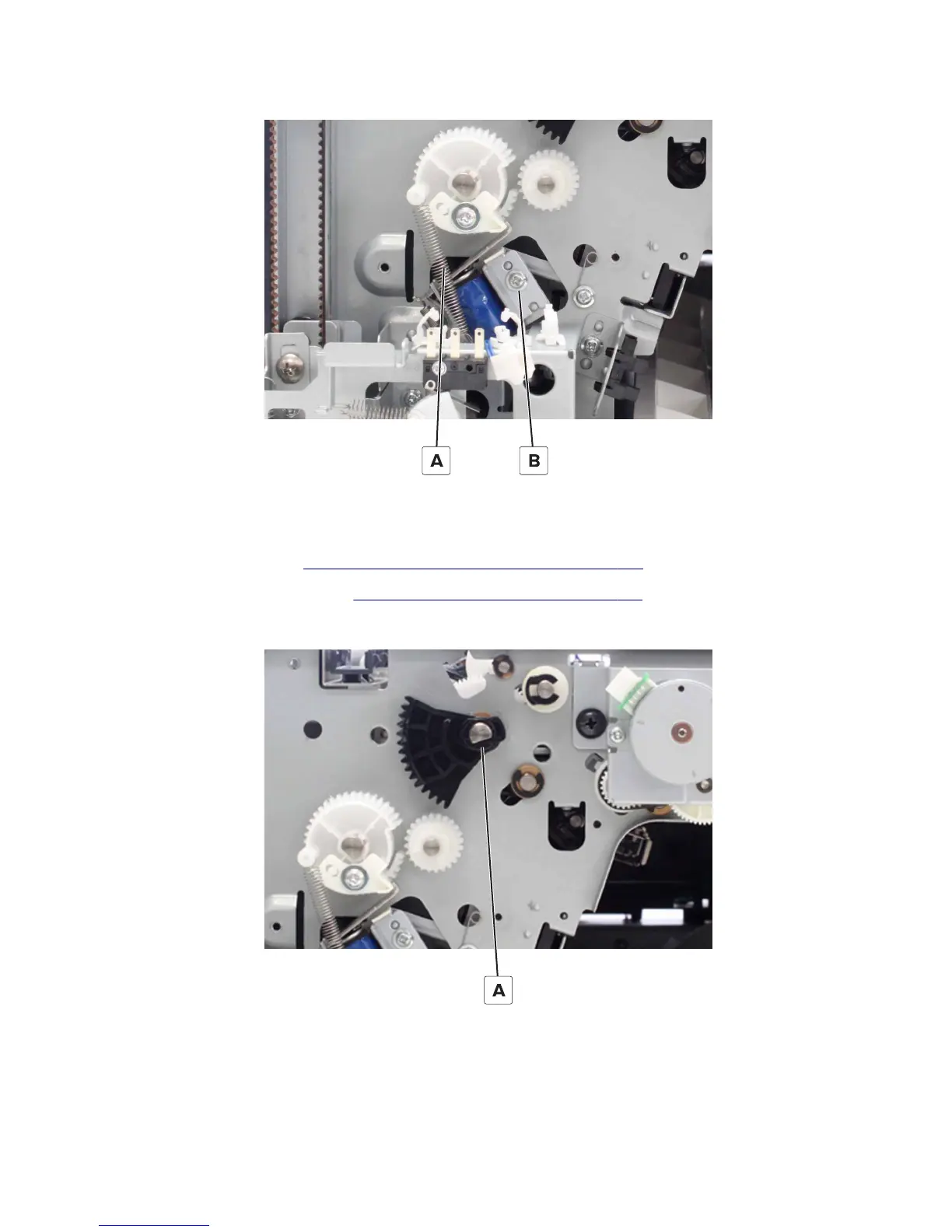

4 Remove the screw (B), and then remove the solenoid.
Staple finisher upper exit actuator removal
1 Remove the front cover. See “Staple finisher front cover removal” on page 229.
2 Remove the exit motor bracket. See “Exit motor bracket removal” on page 277.
3 Remove the clip (A), and then remove the actuator.
4021, 7421
Repair information
285
