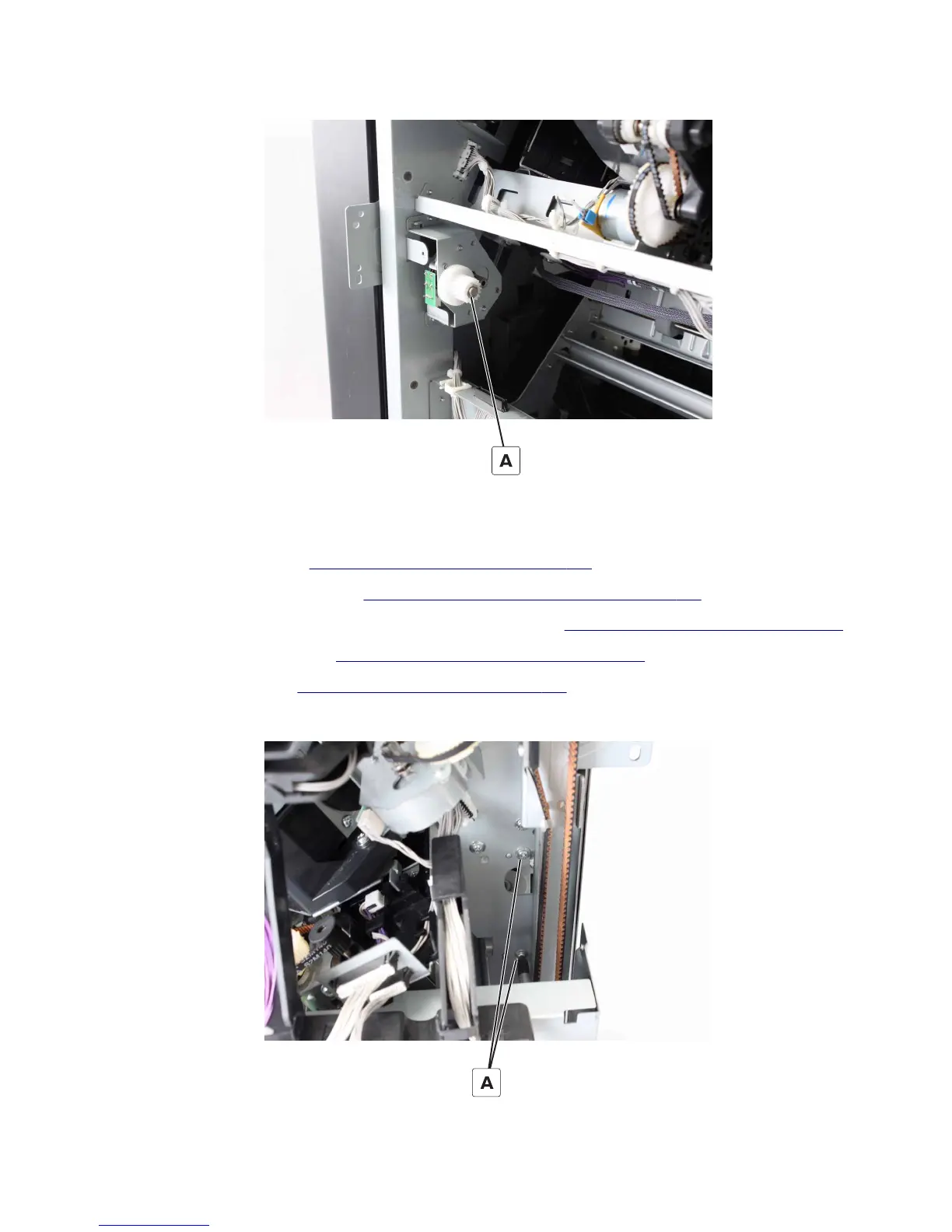

5 Remove the clip (A), and then remove the gear.
Motor (SHPF elevator bin stack height) removal
1 Remove the elevator bin. See “SHPF elevator bin removal” on page 331.
2 Remove the elevator bin bracket. See “SHPF elevator bin bracket removal” on page 332.
3 Remove the HBPF lower left cover or the SHPF lower left cover. See “Lower left cover removals” on page 344.
4 Remove the upper left cover. See “SHPF upper left cover removal” on page 348.
5 Remove the rear cover. See “SHPF rear cover removal” on page 339.
6 Remove the two screws (A), and then remove the motor bracket.
4021, 7421
Repair information
353
