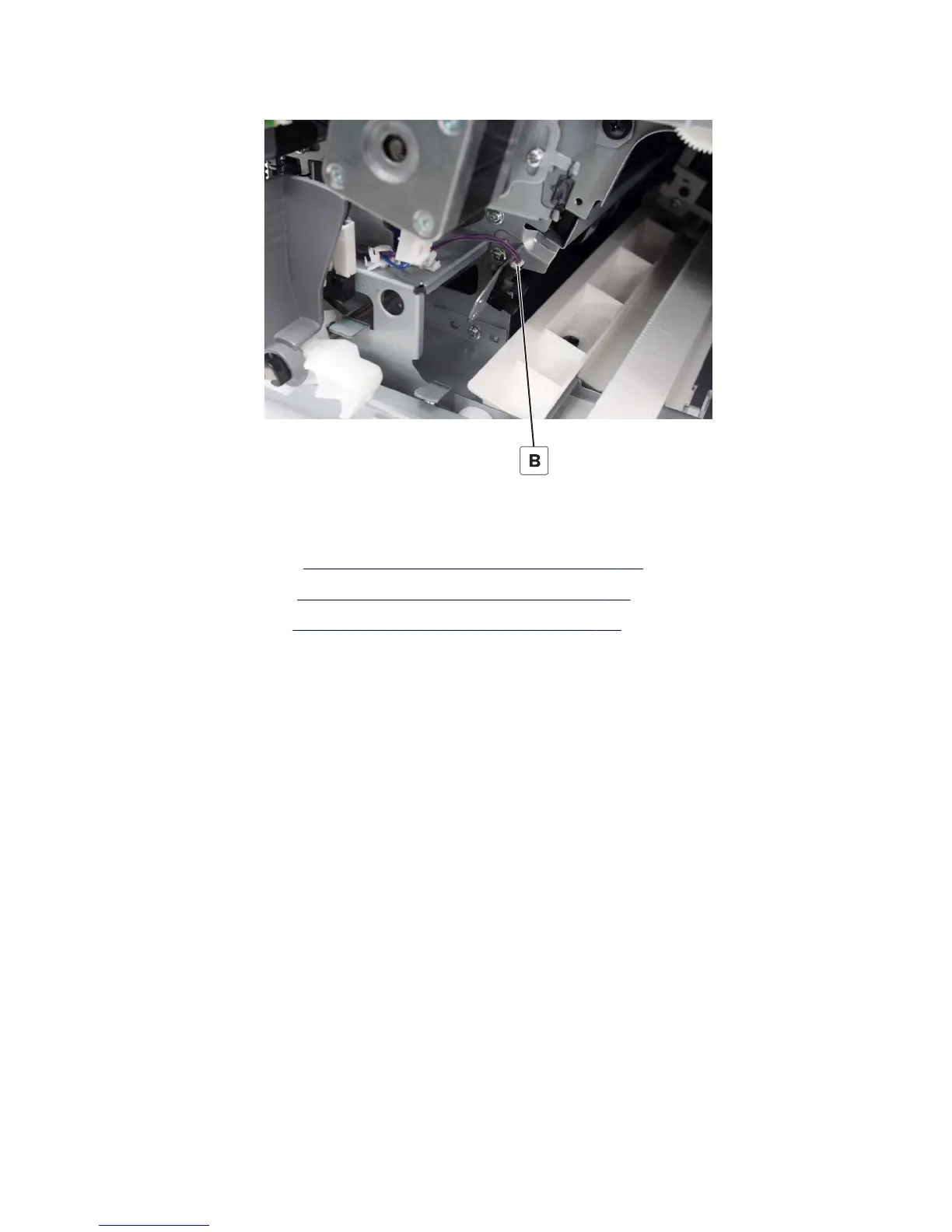

3 Disconnect the cable (B), and then remove the sensor.
Sensor (staple finisher paper feed) removal
1 Remove the front cover. See “Staple finisher front cover removal” on page 229.
2 Remove the rear cover. See “Staple finisher rear cover removal” on page 230.
3 Remove the top cover. See “Staple finisher top cover removal” on page 231.
4 Remove the two screws (A), and then dislodge the bracket.
4021, 7421
Repair information
258
