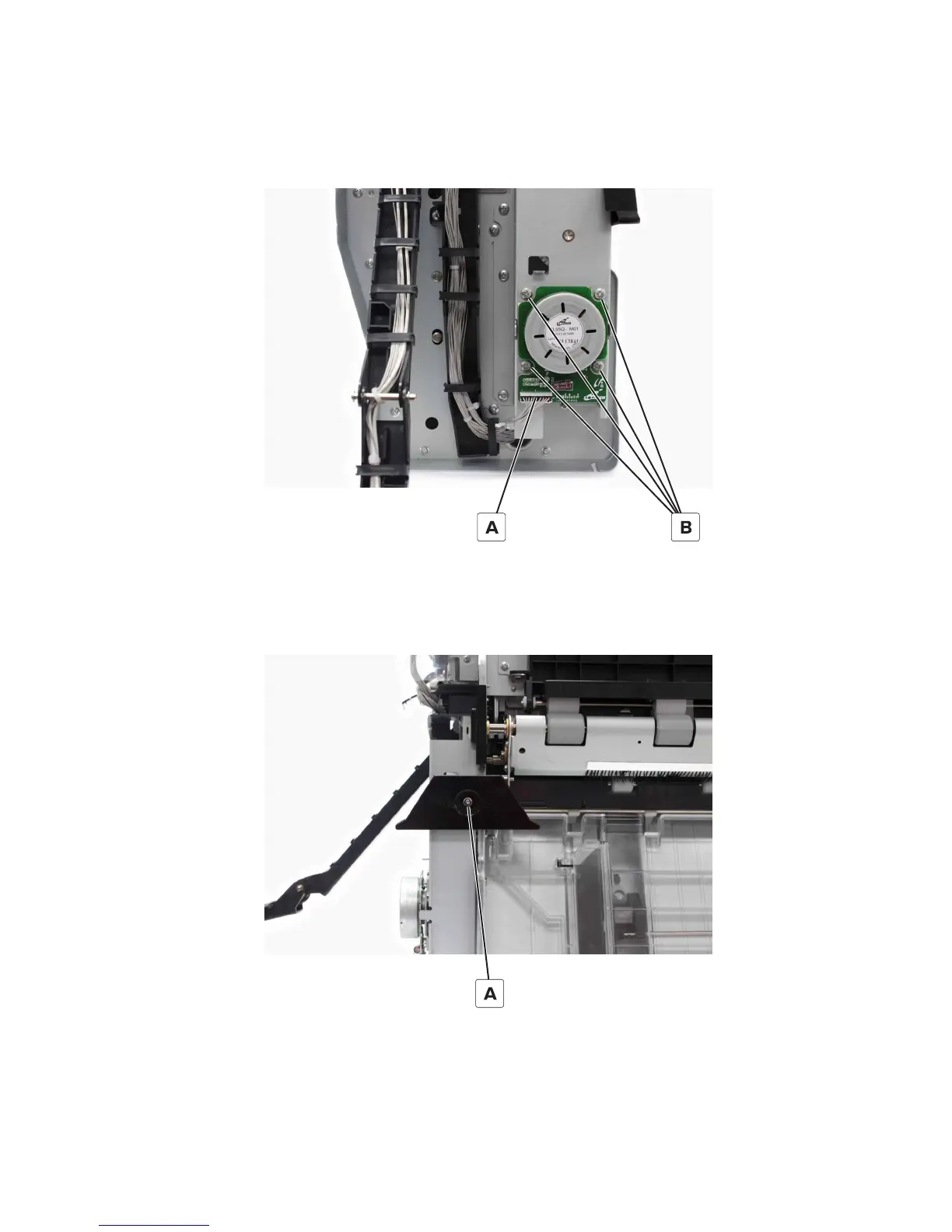

Motor (bifold roller) removal
1
Discon
nect the ca
ble (A).
2
Remove the fou
r screws (B),
and then r
emov
e th
e mot
or.
Bifold
roller
gears r
emoval
1
Remove the screw (A)
, and then remove the cover.
4021, 7421
Rep
air
info
rmatio
n
471
470
472
