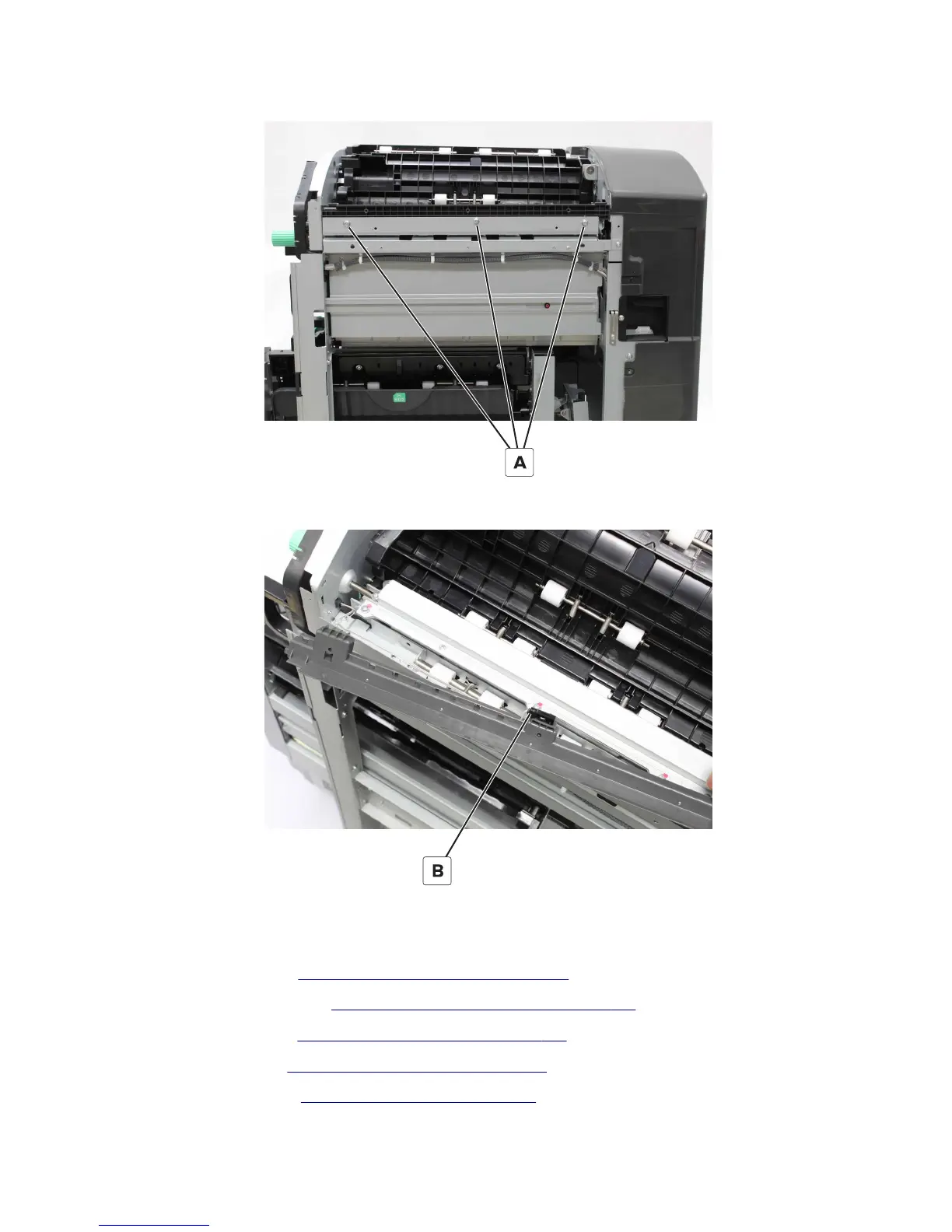

5 Remove the three screws (A), and then remove the sensor holder.
6 Disconnect the cable (B), and then remove the sensor.
SHPF entrance roller removal
1 Remove the front door. See “SHPF front door removal” on page 336.
2 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
3 Remove the rear cover. See “SHPF rear cover removal” on page 339.
4 Remove the top door. See “SHPF top door removal” on page 339.
5 Remove the punch unit. See “Punch unit removal” on page 365.
4021, 7421
Repair information
447
