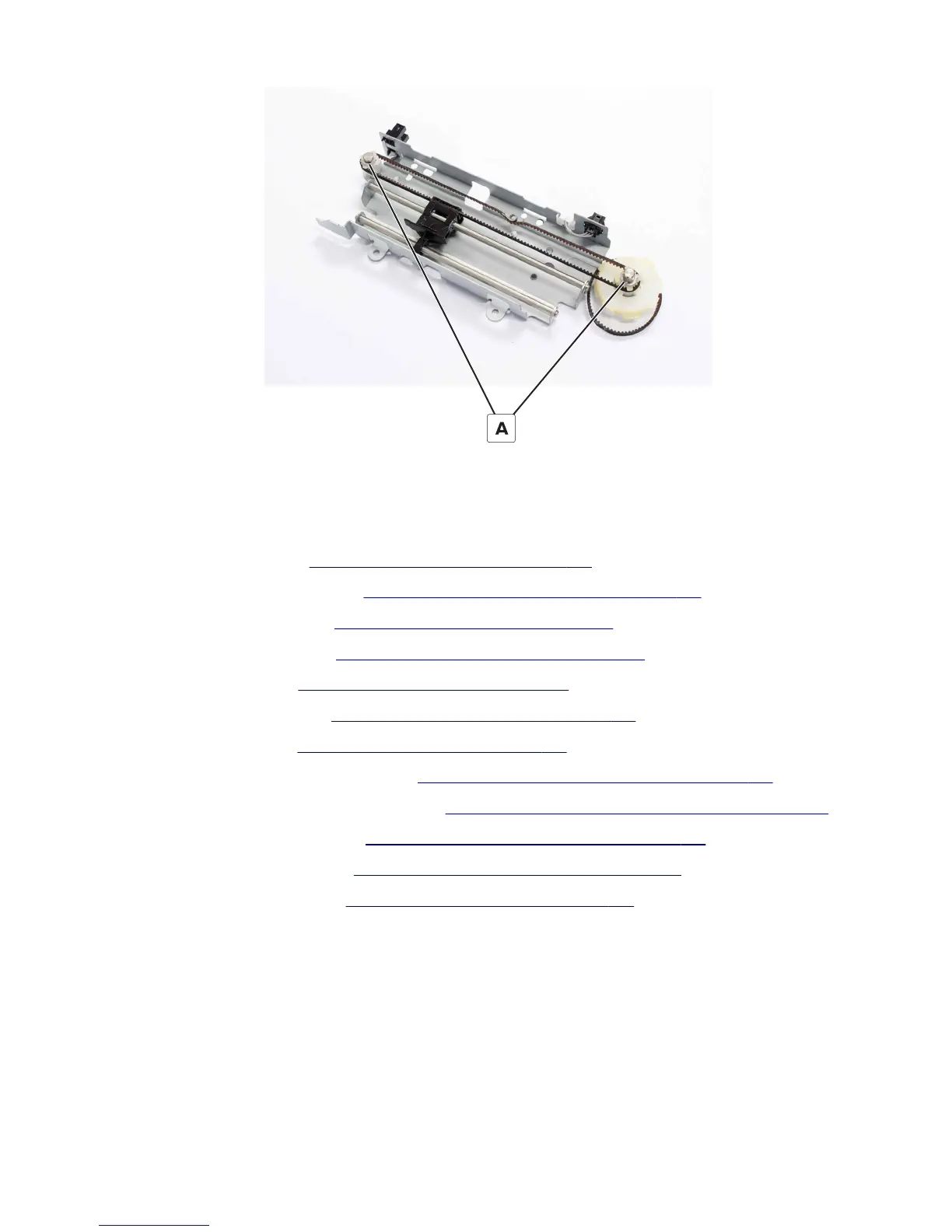

14 Remove the four belts.
Sensor (SHPF aligner position) removal
1 Remove the elevator bin. See “SHPF elevator bin removal” on page 331.
2 Remove the elevator bin bracket. See “SHPF elevator bin bracket removal” on page 332.
3 Remove the lower left cover. See “Lower left cover removals” on page 344.
4 Remove the upper left cover. See “SHPF upper left cover removal” on page 348.
5 Remove the front door. See “SHPF front door removal” on page 336.
6 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
7 Remove the rear cover. See “SHPF rear cover removal” on page 339.
8 Remove the motor (SHPF compiler eject). See “Motor (SHPF compiler eject) removal” on page 399.
9 Remove the motor (SHPF compiler pre-eject). See “Motor (SHPF compiler pre-eject) removal” on page 400.
10 Remove the staple unit assembly. See “SHPF staple unit assembly removal” on page 367.
11 Remove the compiler assembly. See “SHPF compiler assembly removal” on page 403.
12 Remove the front tamper tray. See “SHPF tamper trays removal” on page 411.
