5 Remove the front door. See “SHPF front door removal” on page 336.
6 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
7 Remove the rear cover. See “SHPF rear cover removal” on page 339.
8 Remove the motor (SHPF compiler eject). See “Motor (SHPF compiler eject) removal” on page 399.
9 Remove the motor (SHPF compiler pre-eject). See “Motor (SHPF compiler pre-eject) removal” on page 400.
10 Remove the staple unit assembly. See “SHPF staple unit assembly removal” on page 367.
11 Remove the compiler assembly. See “SHPF compiler assembly removal” on page 403.
12 Remove the tamper trays. See “SHPF tamper trays removal” on page 411.

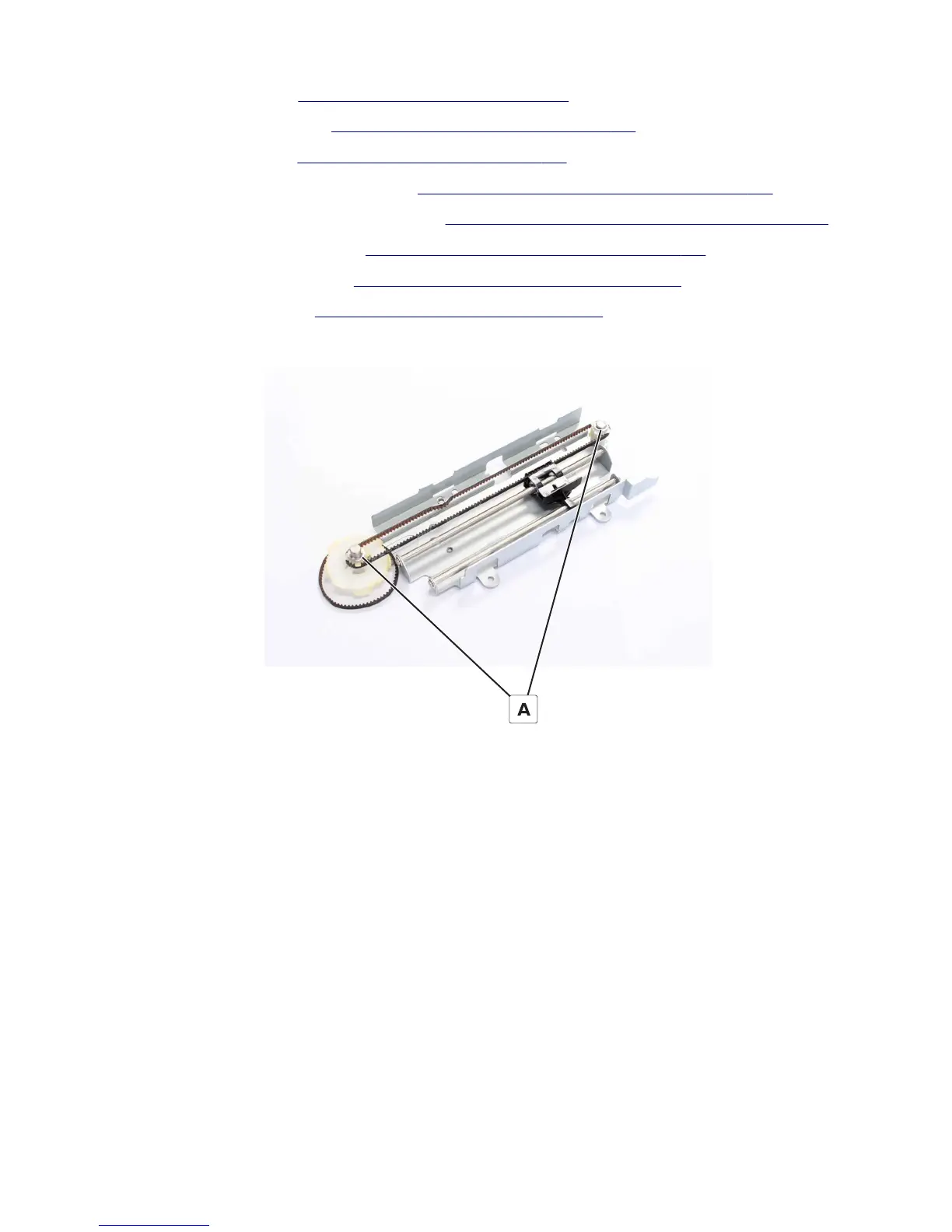

13 Remove the four clips (A), and then remove the gears.
4021, 7421
Repair information
413
