Lexmark MS911 - Booklet Maker Transport Gear and Belt Removal

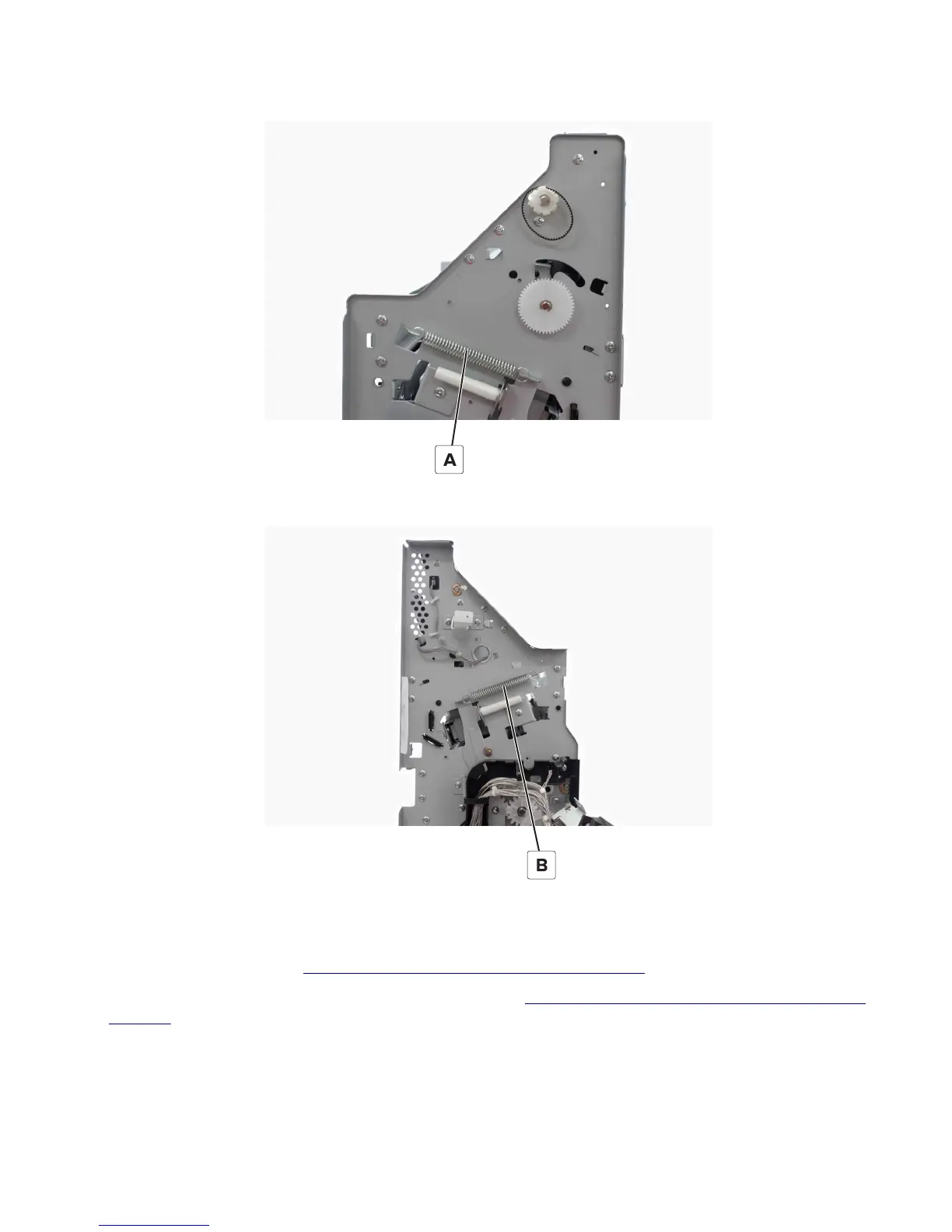

4 Remove the spring (A).
5 Remove the spring (B).
Booklet maker transport gear and belt removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the transport and decurl motor bracket removal. See “Transport and decurl motor bracket removal” on
page 479.
3 Remove the belt (A).
