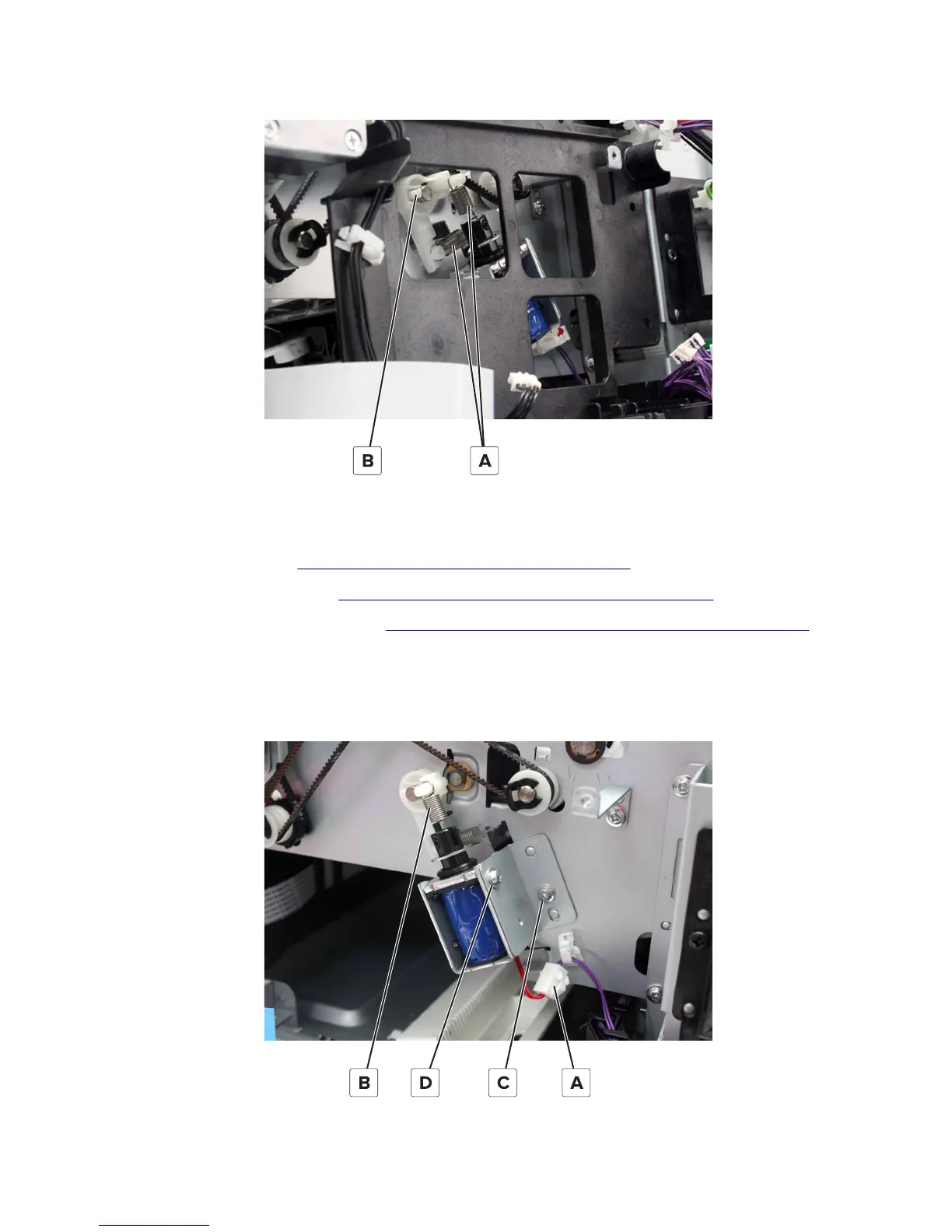

4 Unlatch and then remove the actuator (B).
Staple finisher stack clamp solenoid removal
1 Remove the rear cover. See “Staple finisher rear cover removal” on page 230.
2 Remove the controller board. See “Staple finisher controller board removal” on page 244.
3 Remove the controller board holder. See “Staple finisher controller board holder removal” on page 245.
4 Disconnect the cable (A) and spring (B).
5 Remove the screw (C), and then remove the bracket.
6 Remove the screw (D), and then remove the solenoid.
4021, 7421
Repair information
270
