Lexmark MS911 - HPT Holding Bracket Removal; Sensor (HPT Feed)

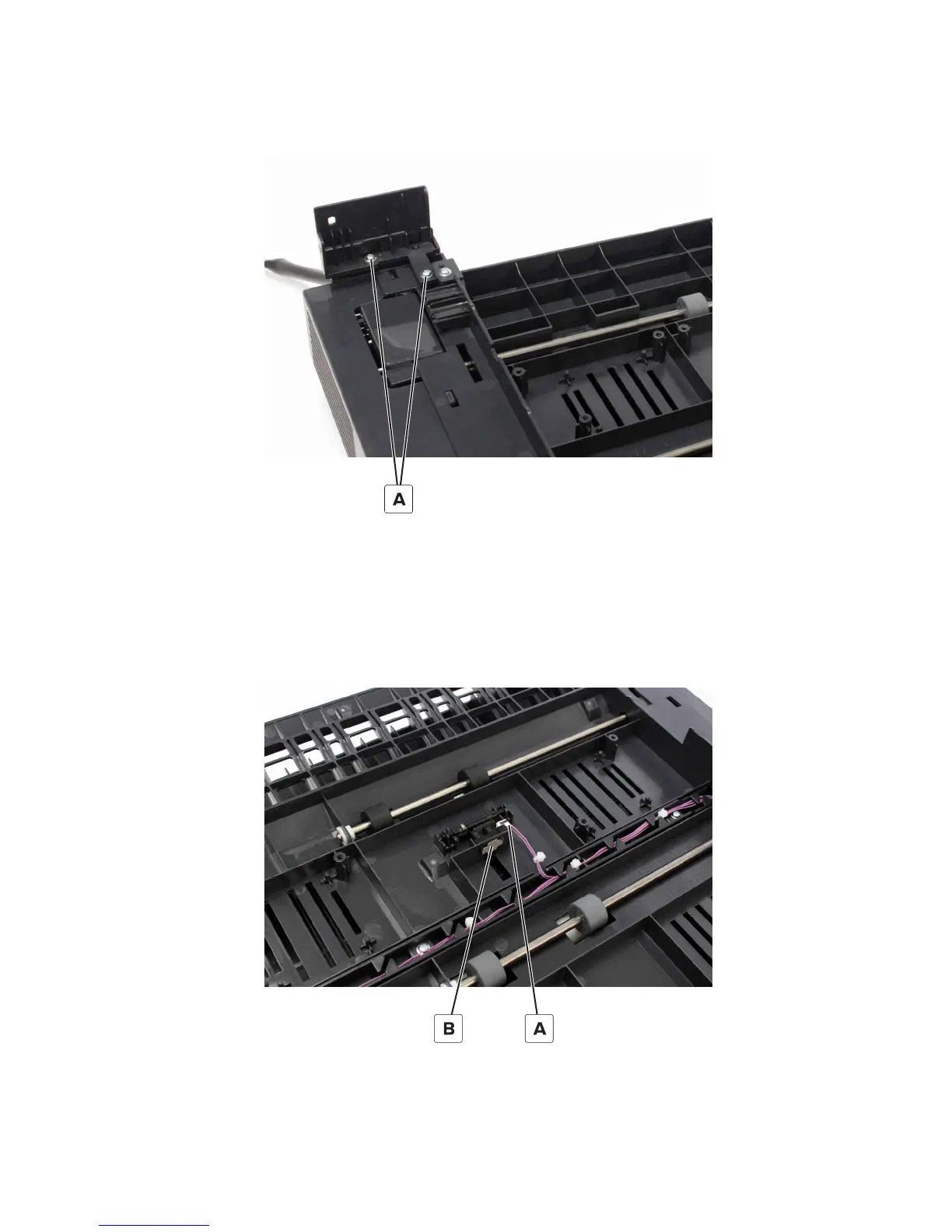

HPT holding bracket removal
1 Remove the two screws (A).
2 Remove the bracket.
Sensor (HPT feed)
1 Disconnect the cable (A).
2 Remove the adhesive (B), and then remove the sensor.
4021, 7421
Repair information
322
