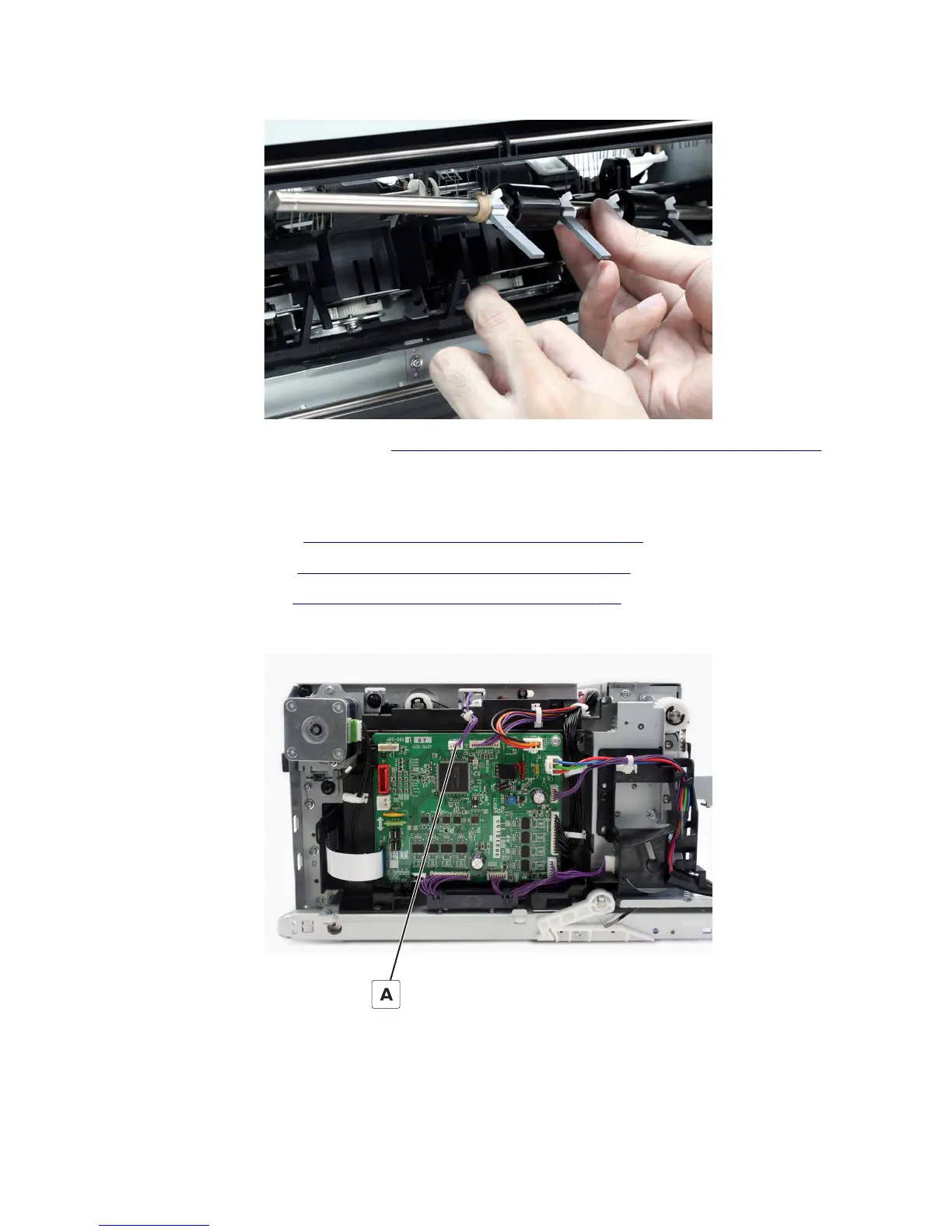

7 Lower the actuator, and then remove the roller.
8 Remove the lower exit roller paddles. See “Staple finisher lower exit roller paddles removal” on page 233.
Staple finisher upper guide removal
1 Remove the front cover. See “Staple finisher front cover removal” on page 229.
2 Remove the rear cover. See “Staple finisher rear cover removal” on page 230.
3 Remove the top cover. See “Staple finisher top cover removal” on page 231.
4 Disconnect the cable (A), and then remove it from the holders.
4021, 7421
