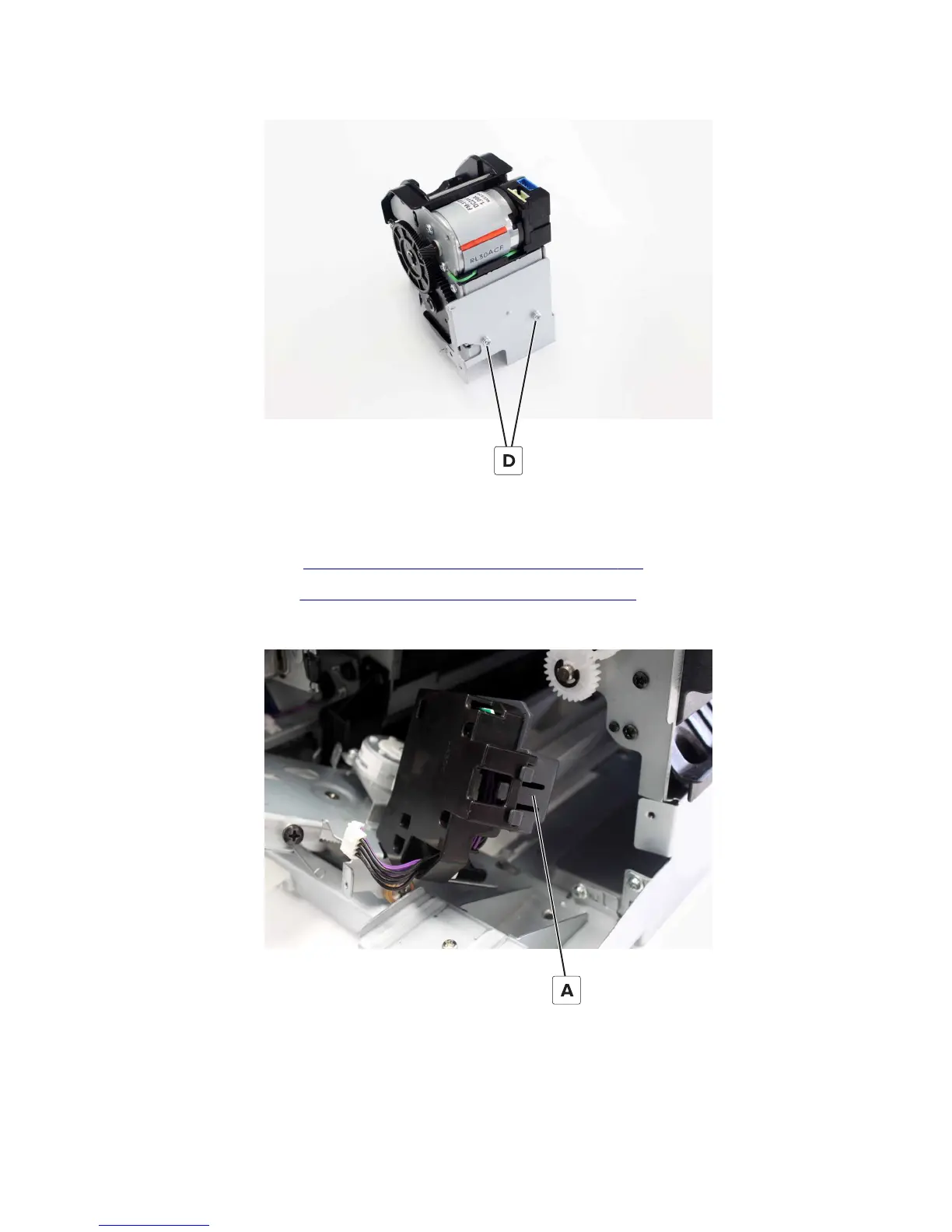

5 Remove the two screws (D), and then remove the plate.
Staple finisher staple unit carriage assembly removal
1 Remove the front cover. See “Staple finisher front cover removal” on page 229.
2 Remove the staple unit. See “Staple finisher staple unit removal” on page 260.
3 Unlatch and then remove the interface board cover (A).
4021, 7421
Repair information
261
