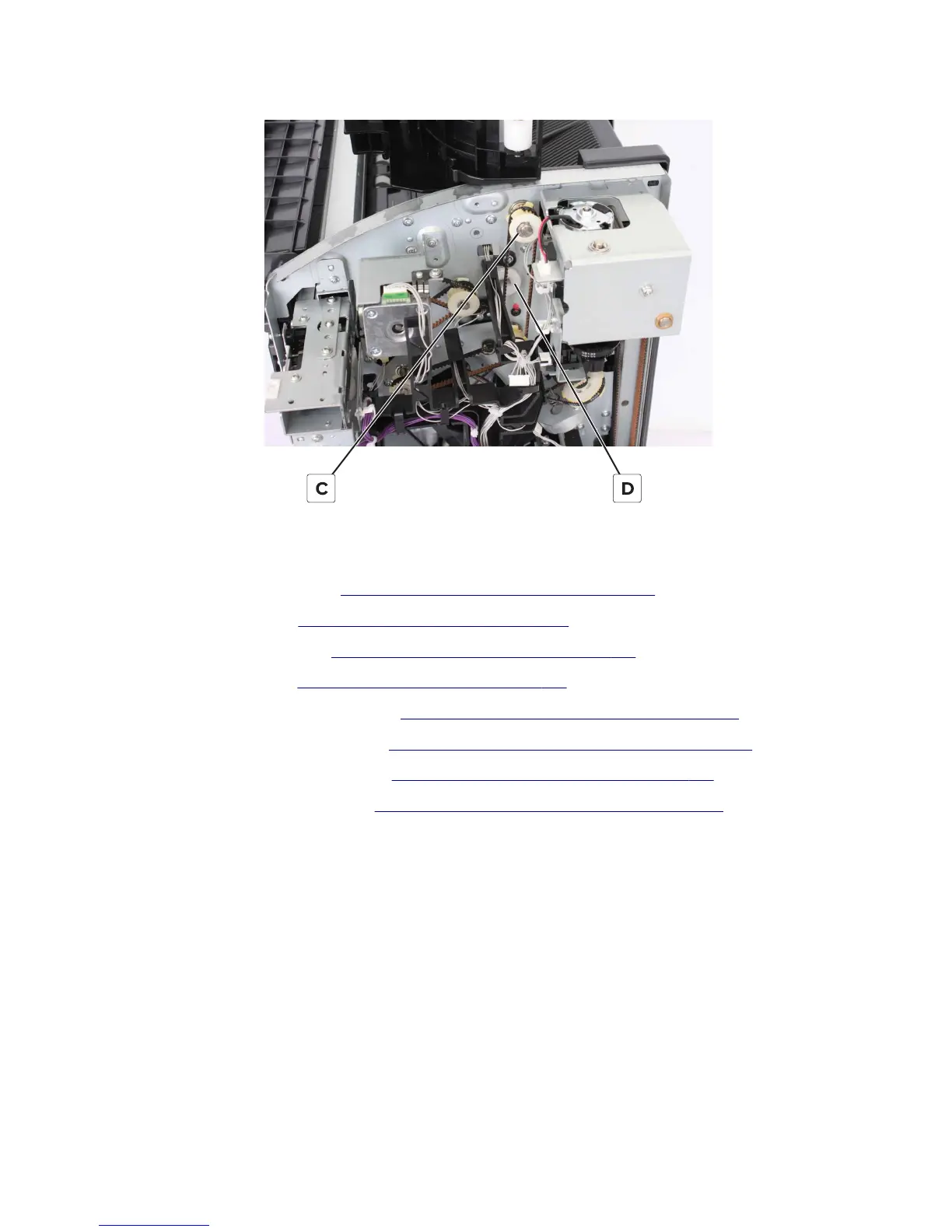

12 Remove the bushing (D), and then remove the cam.
SHPF top bin transport roller removal
1 Remove the top bin extender. See “SHPF top bin extender removal” on page 331.
2 Remove the front door. See “SHPF front door removal” on page 336.
3 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
4 Remove the rear cover. See “SHPF rear cover removal” on page 339.
5 Remove the sensor (SHPF top bin exit). See “Sensor (SHPF top bin exit) removal” on page 397.
6 Remove the top bin exit paper guide. See “SHPF top bin exit paper guide removal” on page 398.
7 Remove the transport motor bracket. See “Motor (SHPF transport) removal” on page 356.
8 Remove the paddle motor bracket. See “SHPF paddle motor bracket removal” on page 383.
4021, 7421
