Lexmark MS911 - Motor (SHPF Feed) Removal; Motor (SHPF Transport) Removal

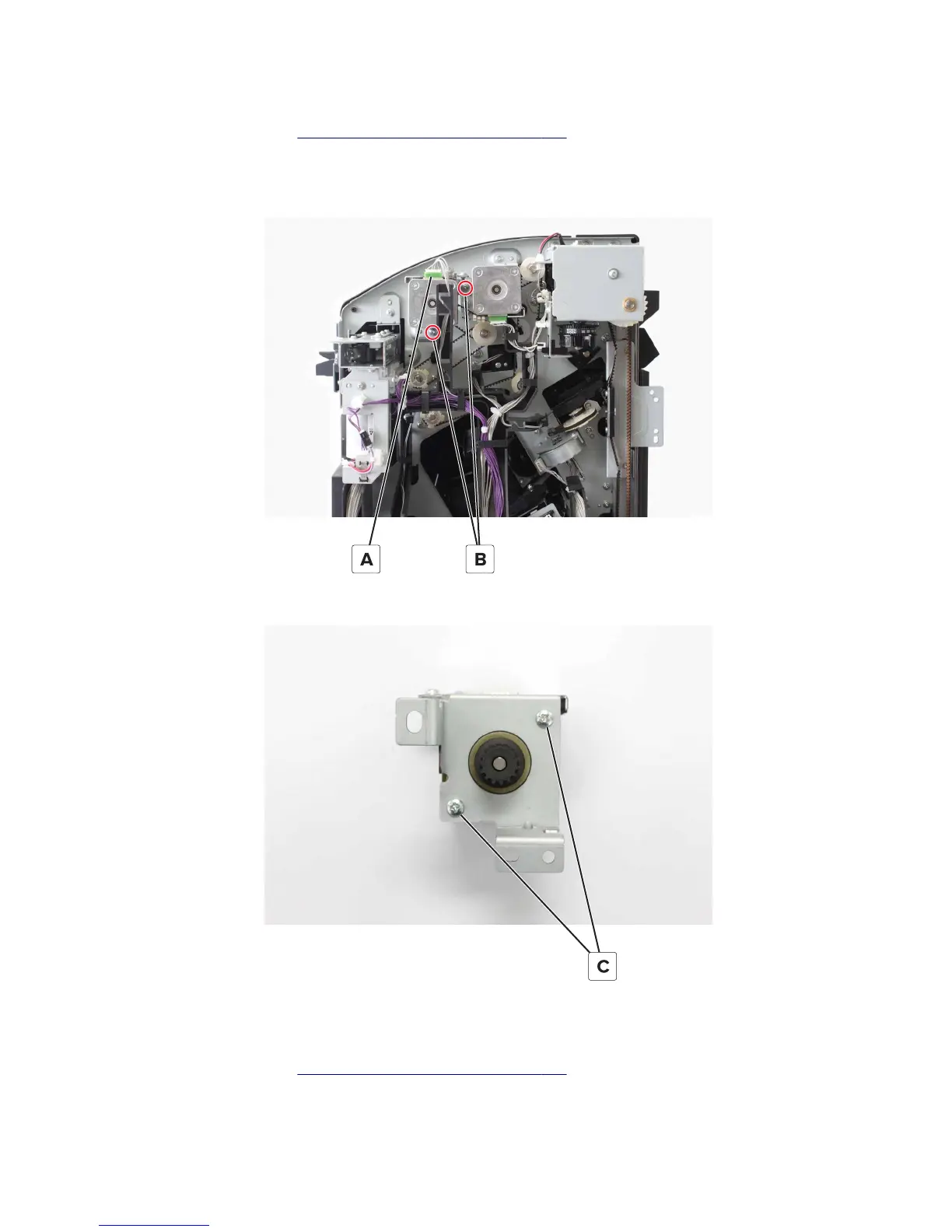

Motor (SHPF feed) removal
1 Remove the rear cover. See “SHPF rear cover removal” on page 339.
2 Disconnect the cable (A).
3 Remove the two screws (B), and then remove the motor bracket.
4 Remove the two screws (C), and then remove the motor.
Motor (SHPF transport) removal
1 Remove the rear cover. See “SHPF rear cover removal” on page 339.
2 Disconnect the cable (A).
4021, 7421
Repair information
356
