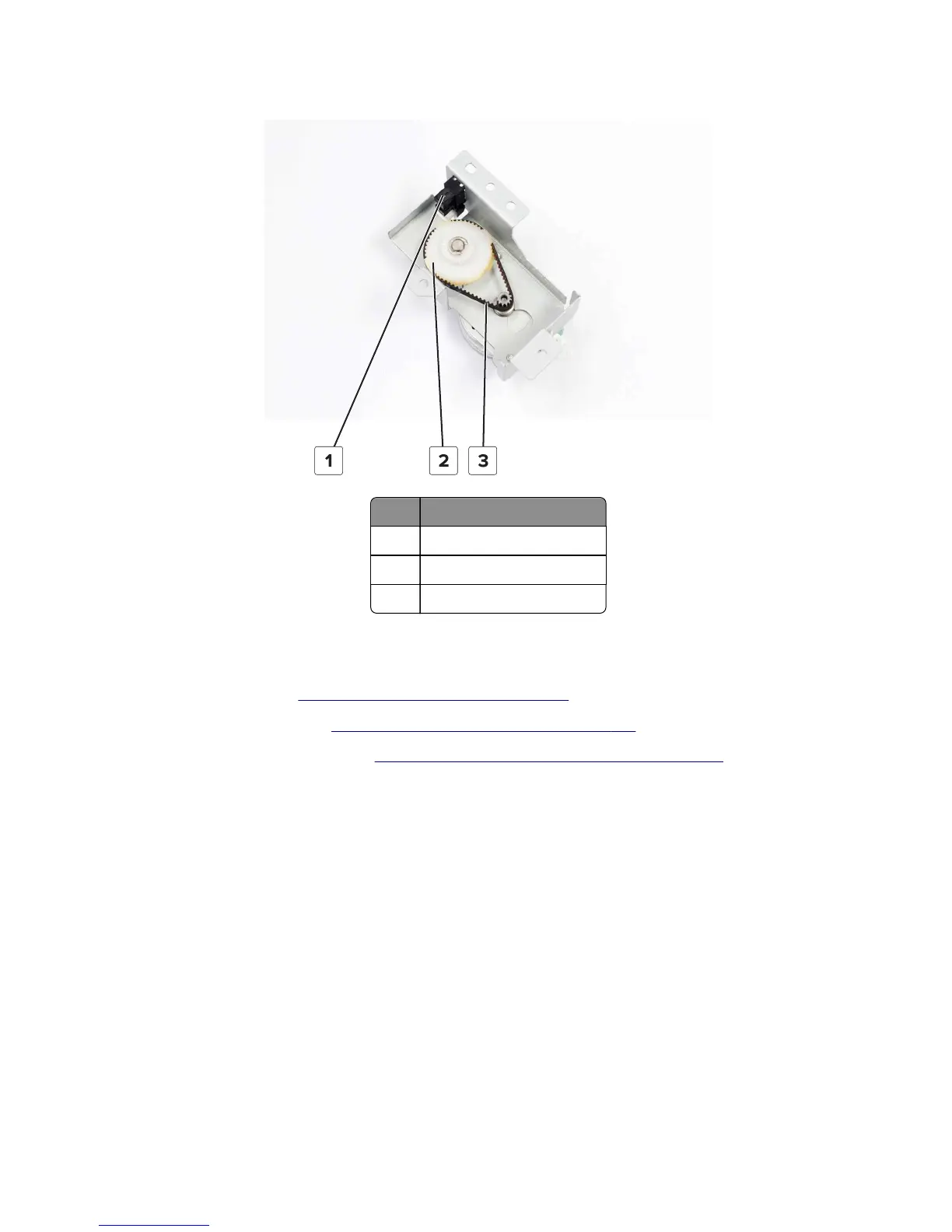

4 Remove the appropriate FRU.
# Part
1 Sensor (SHPF paddle home)
2 SHPF paddle drive gear
3 SHPF paddle drive belt
Sensor (SHPF top door) removal
1 Remove the front door. See “SHPF front door removal” on page 336.
2 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
3 Remove the paddle motor bracket. See “SHPF paddle motor bracket removal” on page 383.
4 Disconnect the cable (A).
4021, 7421
