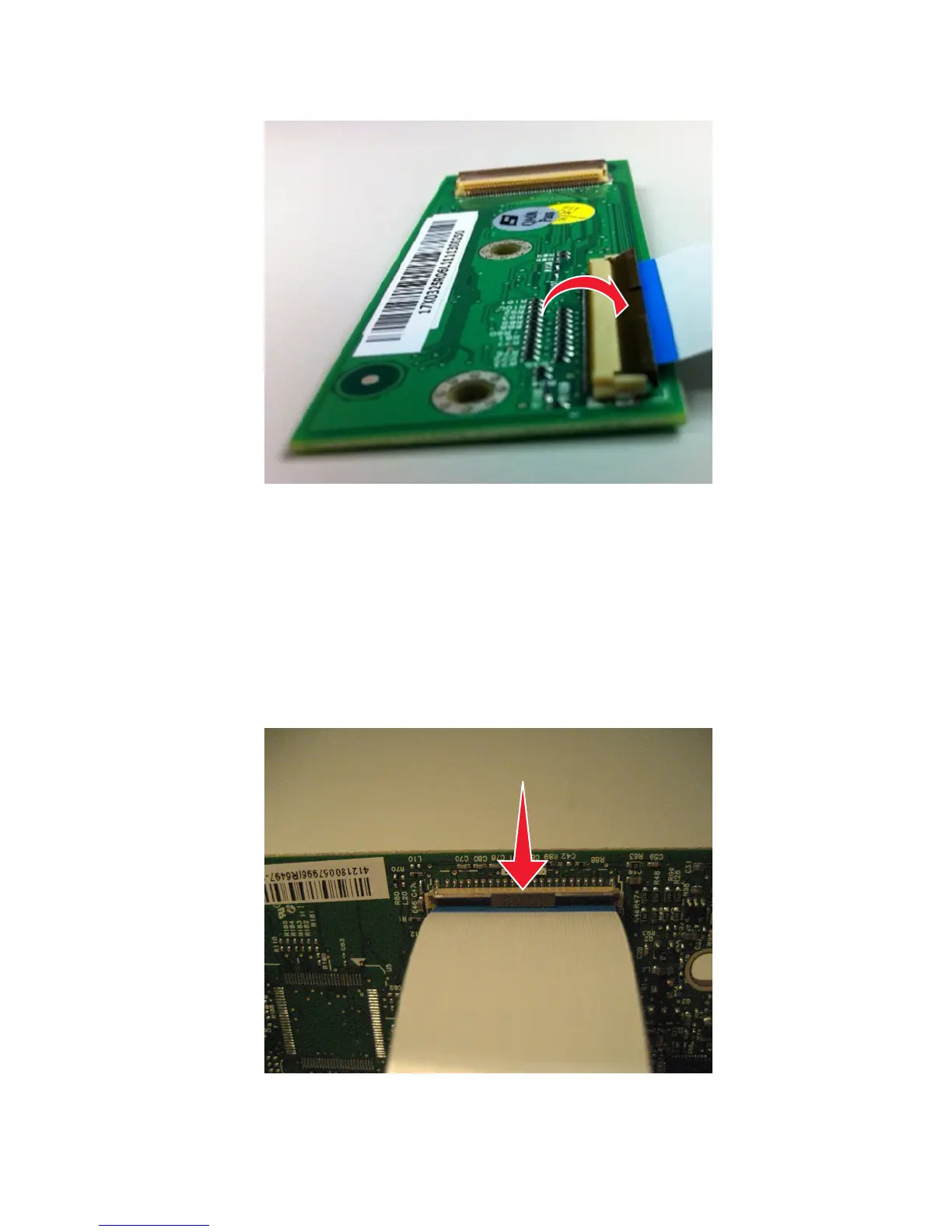

3 Rotate the locking actuator to the locked position.
Vertical mount contact connector
This connector uses a back flip locking actuator to lock the ribbon cable into the ZIF connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the actuator
using your finger. Do not use a fingernail or screwdriver to open the actuator to avoid damaging the ribbon cable. Do
not close the actuator from its ends.
Removing the cable
1 Rotate the locking actuator from the center of the actuator to the unlocked position.
2 Remove the cable.
4021, 7421
Repair information
220
