Staple finisher exit guide lift cam removal
1 Remove the front cover. See “Staple finisher front cover removal” on page 229.
2 Remove the rear cover. See “Staple finisher rear cover removal” on page 230.
3 Remove the top cover. See “Staple finisher top cover removal” on page 231.

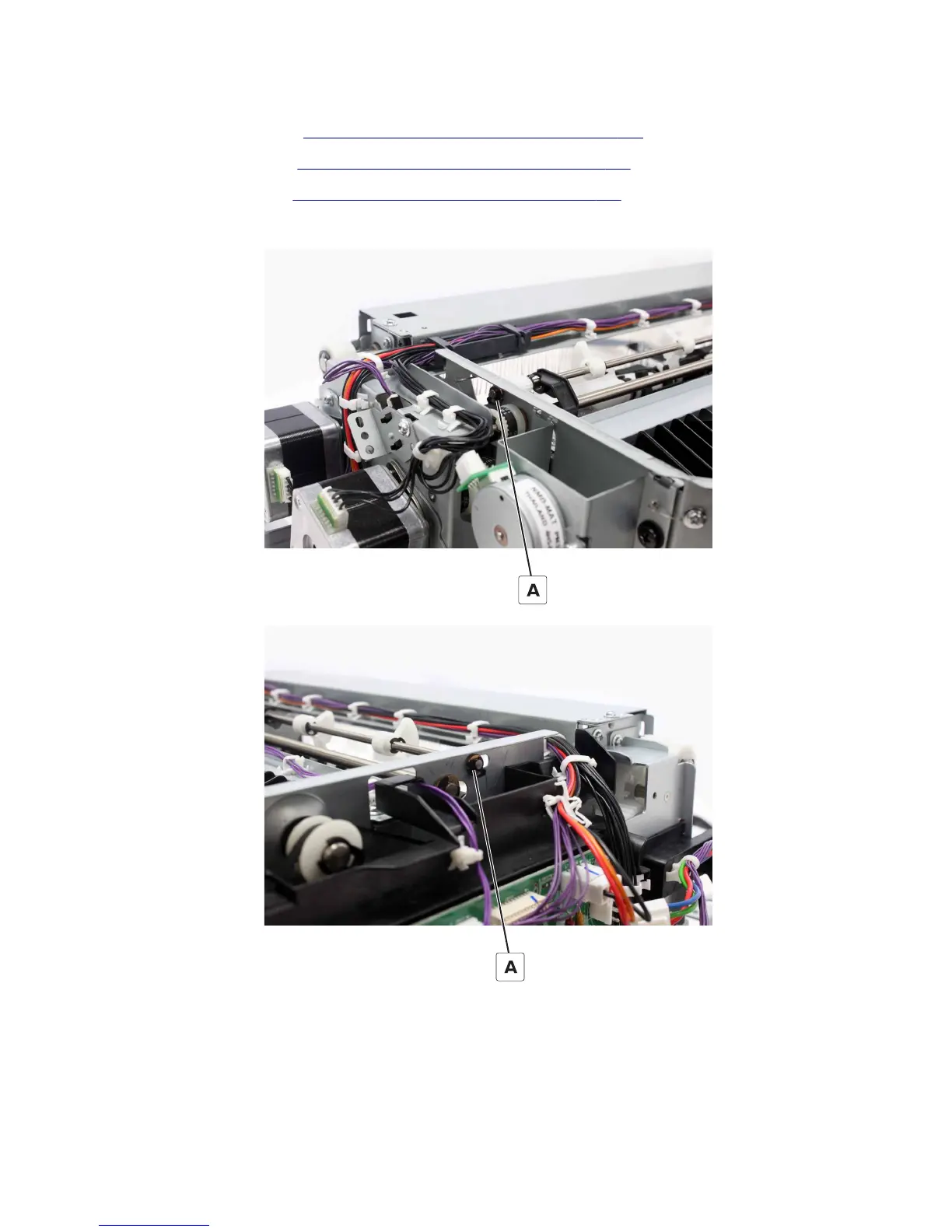

4 Remove the two clips (A), and then remove the bushings.
5 Remove the shaft.
