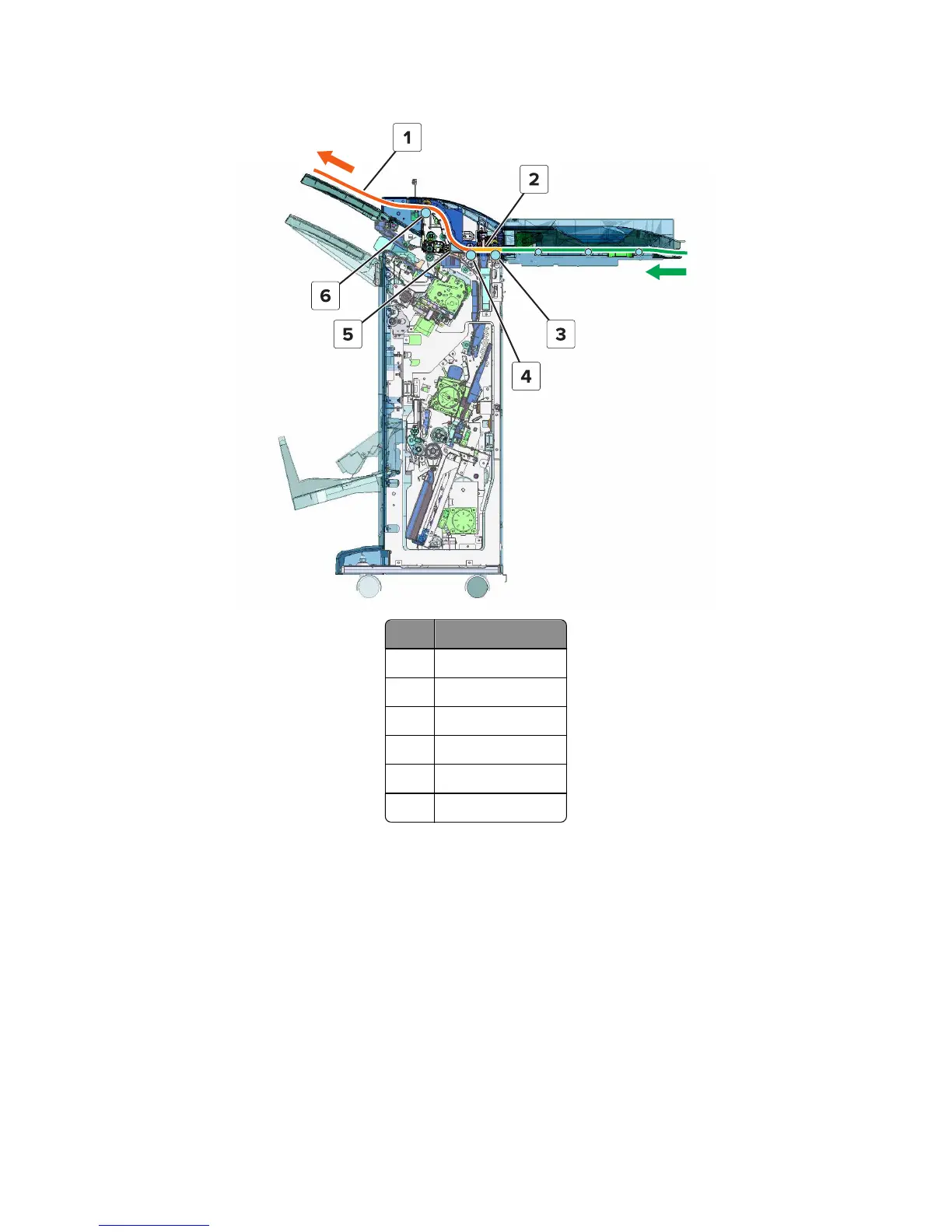

Top bin exit section paper path
# Part
1 Paper path
2 Punch unit
3 Entrance roller
4 Diverter feed roller
5 Diverter
6 Top bin exit roller
Top bin exit section paper feed
The diverter feed roller pushes the paper to the diverter. The diverter moves down to guide the paper through the top
bin exit paper guide. The sensor (SHPF top bin exit) detects the paper as it passes through the paper path, and the
sensor (SHPF top bin full) determines if the bin is full.
4021, 7421
Appendix C: Theory of operation
647
