Lexmark MS911 - Page 524

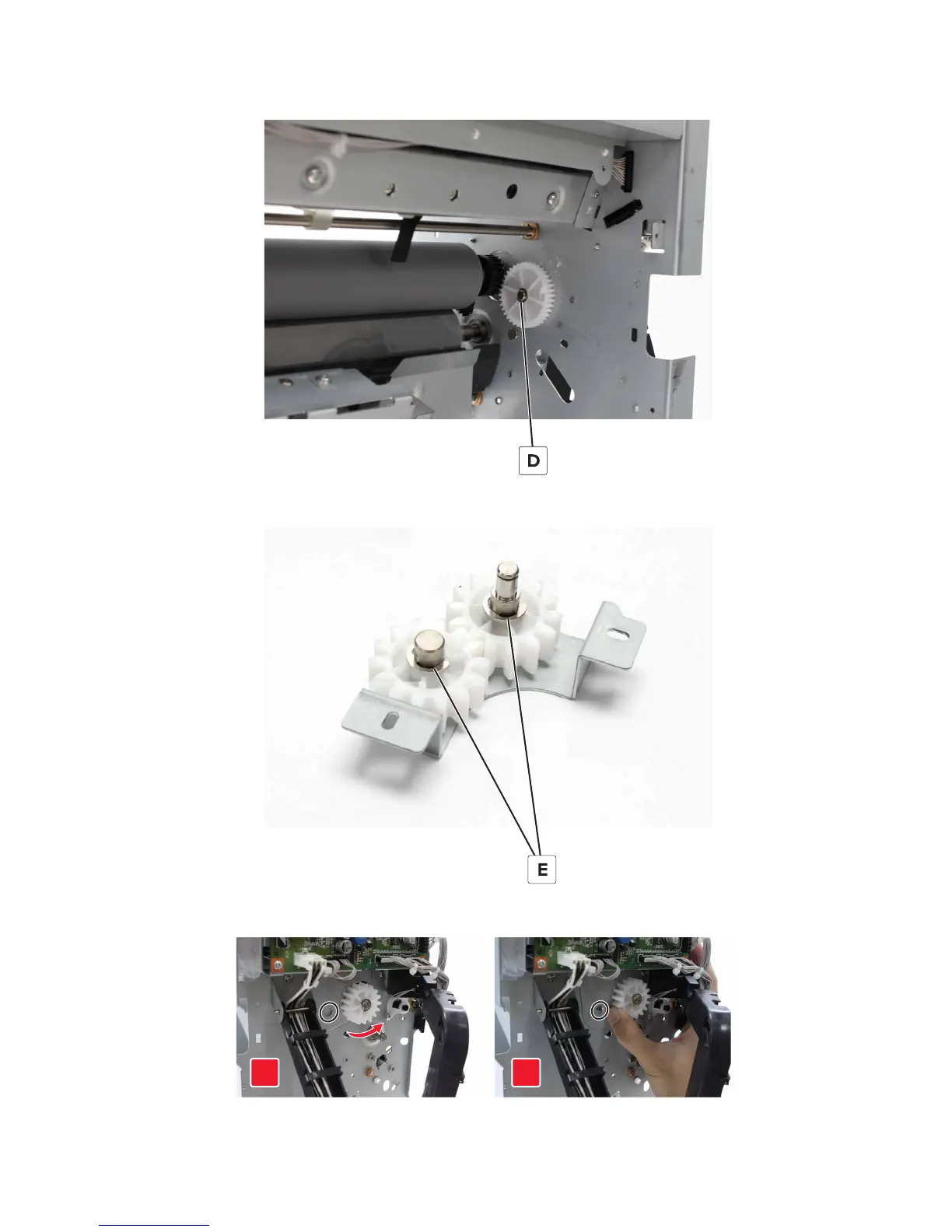

11 Remove the clip (D), and then remove the gear.
12 Remove the two clips (E), and then remove the gears.
Installation note: Align the holes on the frame and arm, and then install the gear bracket.
1 2
4021, 7421
Repair information
524
