Lexmark MS911 - Page 523

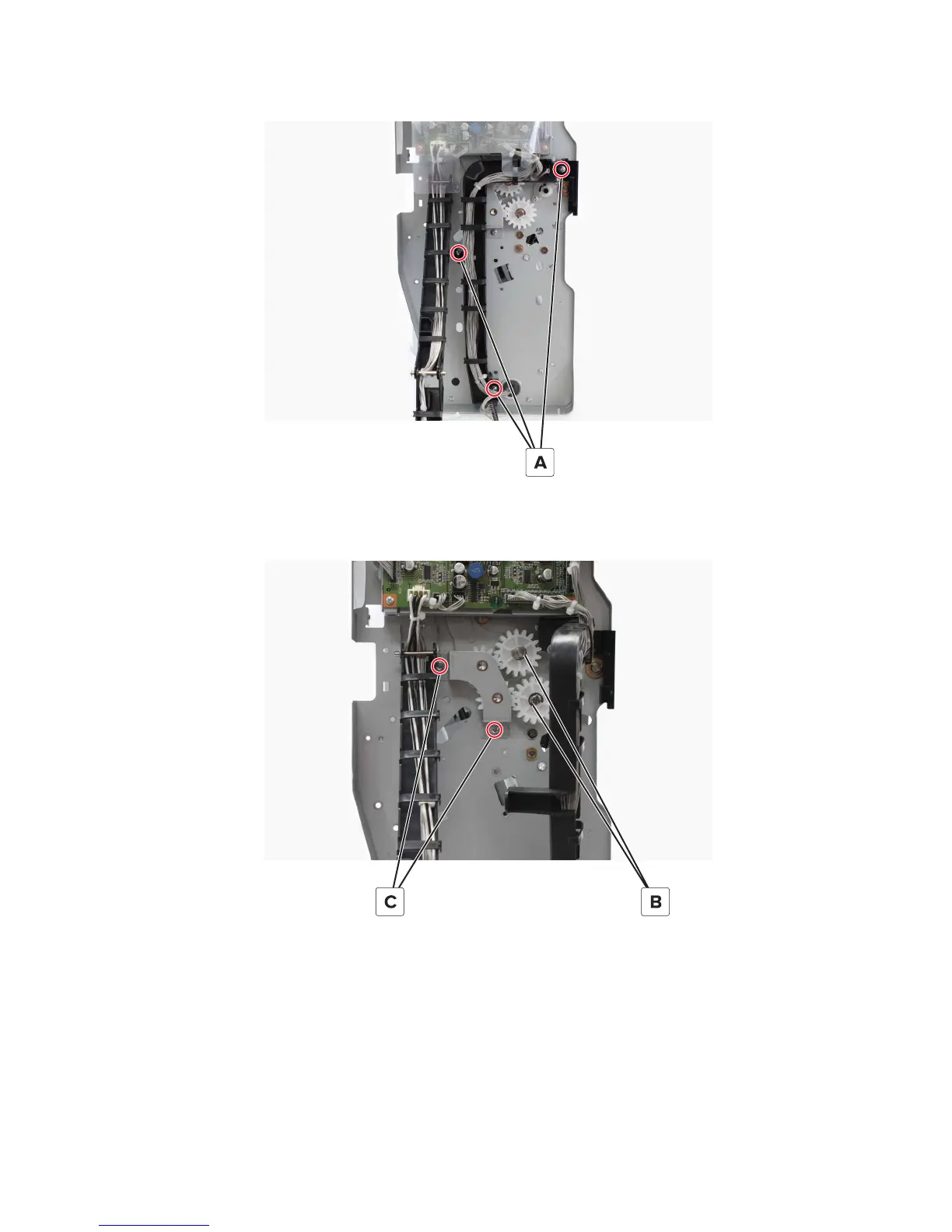

8 Remove the three screws (A), and then set aside the cable holder.
9 Remove the two clips (B), and then remove the gears.
10 Remove the two screws (C), and then remove the gear bracket.
4021, 7421
Repair information
523
