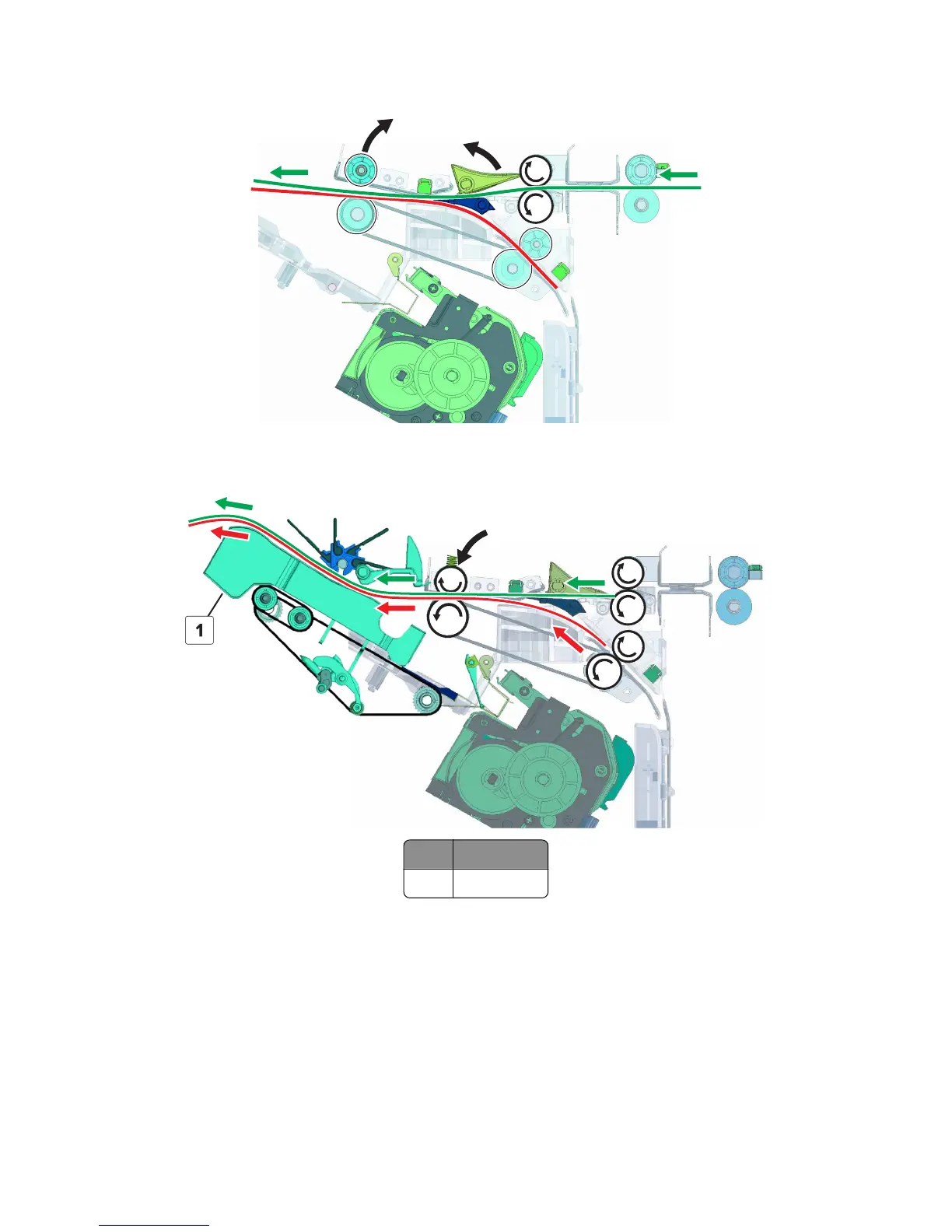

The idler rollers and diverter raise, and then the second sheet is transported over the first sheet.
The idler rollers lower, and then the two sheets are fed over the tamper plates. Before the trailing edge passes the
compiler feed roller, the tamper plates return to their home position.
# Part
1 Tamper plate
After the trailing edge passes the compiler feed roller, the compiler guide moves down to push down the paper to the
compiler assembly. The rotation of the motor (SHPF paddle) and paddle cam control the position of the guide.
4021, 7421
Appendix C: Theory of operation
657
