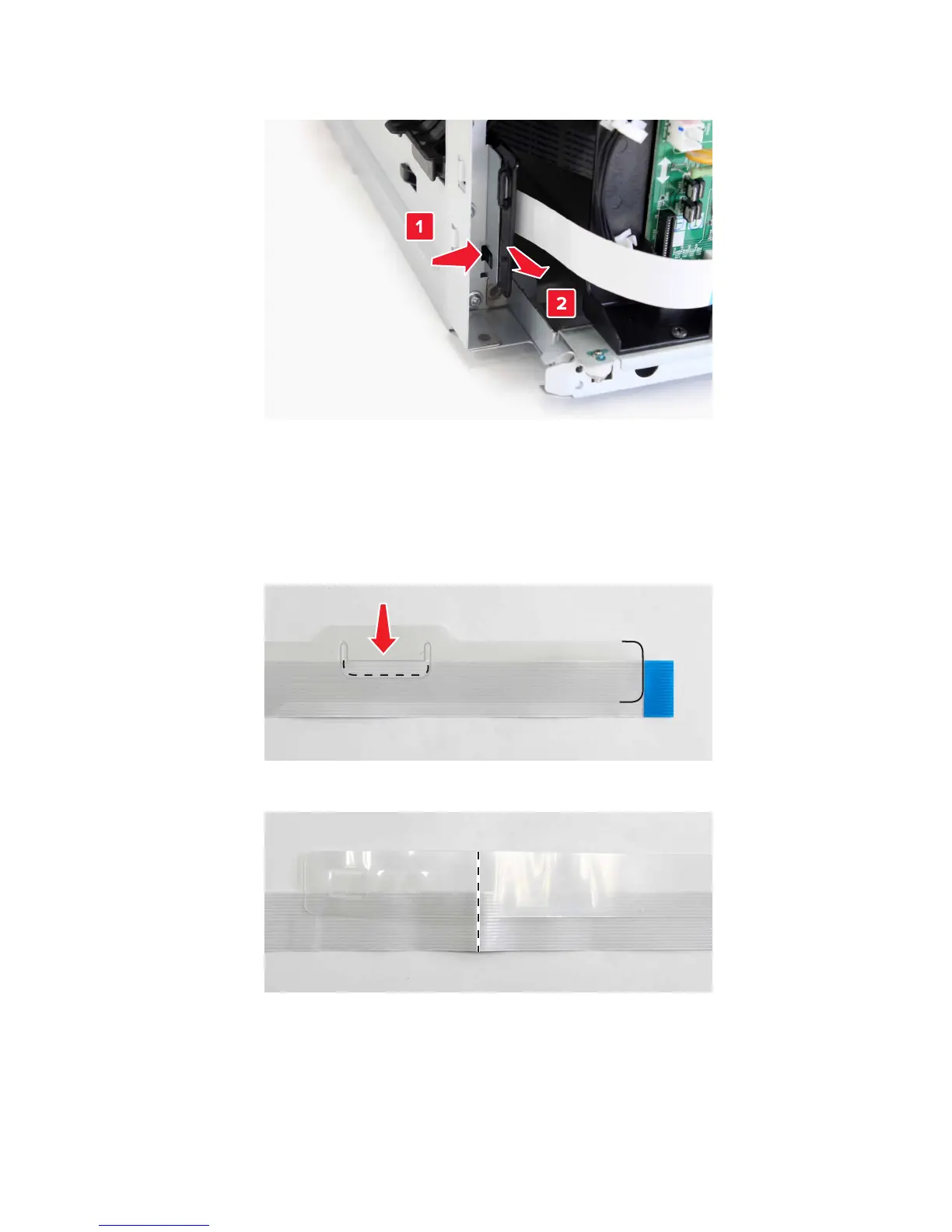

5 Press the latch, and then remove the cable holder.
6 Remove the cable from the holder.
Installation notes:
a Place the cable on a flat surface, with the contacts facing down.
b Place the plastic film over the cable, and then position the tab under the cable. Align the edge of the film with the
blue end.
c Bend the cable along the dashed line.
4021, 7421
Repair information
268
