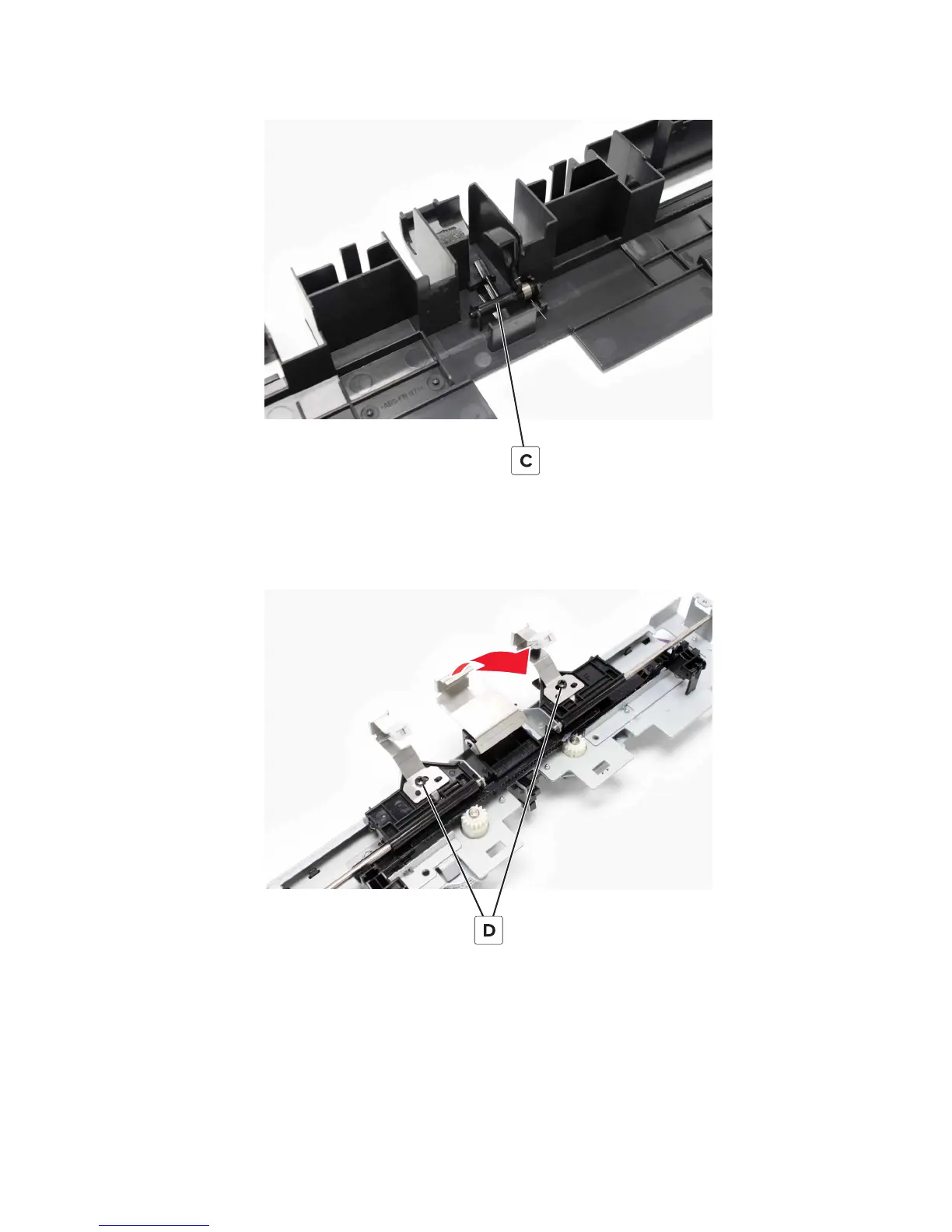

19 From under the tray, remove the tamper paper present sensor actuator (C).
20 Remove the two screws (D), and then remove the front and rear aligners.
Note: The rear aligner has a clear plastic film, while the front aligner has a black plastic film.
21 Swing and then remove the middle aligner.
4021, 7421
Repair information
317
