Lexmark MS911 - Page 330

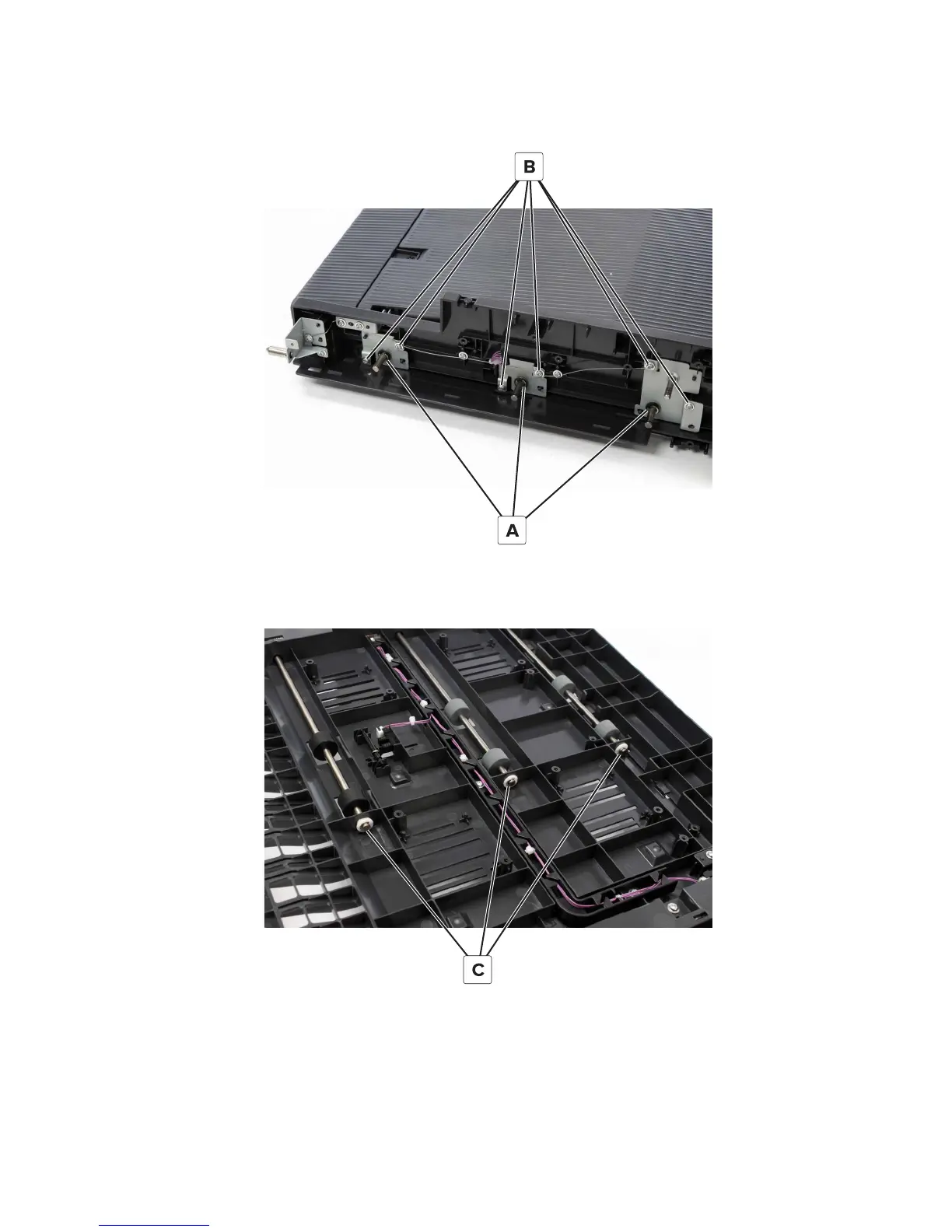

4 Remove the three clips (A).
5 Remove the six screws (B), and then remove the plates.
Installation note: Position the ground wire over the plates before installing the screws.
6 Remove the three clips (C), and then remove the bushings.
7 Remove the rollers.
4021, 7421
Repair information
330
